Controler B105-20-MODBUS for BLDC motors control
Voltage 24-48VDC
Output 20Amp cont (80A peak)
Max output power settings
Communication RS‑485, Modbus - ASCII nebo RTU
Control:
Motor speed set by analog input or by Modbus
settings of acceleration and deceleration
max current settings
memory for up to 1024 commnads
program launch by modbus, automaticaly at startup, external input
- inputs (or buttons) for start, stop, reverze, direction
positioning internal position counter (capacity 2*10^9 turns)
Controler BLDC B105-20 MODBUS [English only]
Zaslat poptávku
Controler B105-20-DINRAIL for BLDC motors control
Voltage 24-48VDC
Output 20Amp cont (80A peak)
Max output power settings
Control
analog speed control, internal potentiometer or external analog signal
smooth acceleration and deceleration set by potentiometer
buttons for inputs run, stop and reverse
inputs for external alarm signal
Controler BLDC B105-20-DINRAIL [English only]
Zaslat poptávku

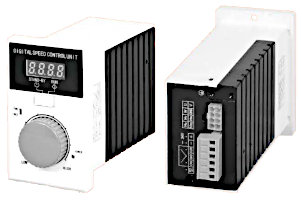

Controler BC230-100 for BLDC motors control for 230VAC
Input voltage 230VAC
Output power 100W
Control:
Manual panel
Comunication RS485
Speed and acclereation set 0.1-1.0 seconds
Controler BC230-100 [English only]
Zaslat poptávku
Brushless DC motors Controllers
- for 3 phase DC brushless motors with Hall sensors
-
- main function control speed, direction, active braking, smooth start and stop.
| Controler | Rated Voltage | Max current | Max Power | Comunication
|
| B103-20 | 24-48VDC | 20A | 690W | -
|
| B103-20-RS485 | 24-48VDC | 20A | 690W | RS485
|
| B103-50-RS485 | 24-48VDC | 50A | 2000W | RS485
|
Speed and times of acceleration and deceleration can be set by internal potenciometers or externa analog signal.
Rychlost, časy zrychlení a zpomalení se dají nastavit interními potenciometry na krytu kontroleru.
Rychlost může být také nastavena analogovým signálem 0-5VDC nebo externím potenciometrem. Směr otáčení
se mění externím signálem nebo stlačením tlačítka. Start nebo stop motoru je také možné realizovat buď
tlačítky nebo ext. Signálem. Volitelně kontrolery umožňují komunikaci pro průmyslové sběrnici RS485.
Příkazy po RS485 sběrnici :
- start and stop,
- set direction,
- set speed,
- set acceleration,
- set deceleration,
- set current position,
- set new communication address.
Controller with RS485 has inner counter. Its possible tor read the motor position.
BLDC Motors Controller B103-20 --- Manual [English only]
BLDC Motors Controller B103-20 / B103-50 with RS485 --- Manual [English only]
