Screw jacks

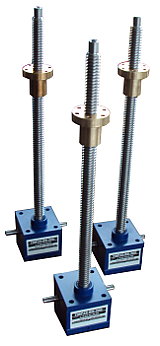

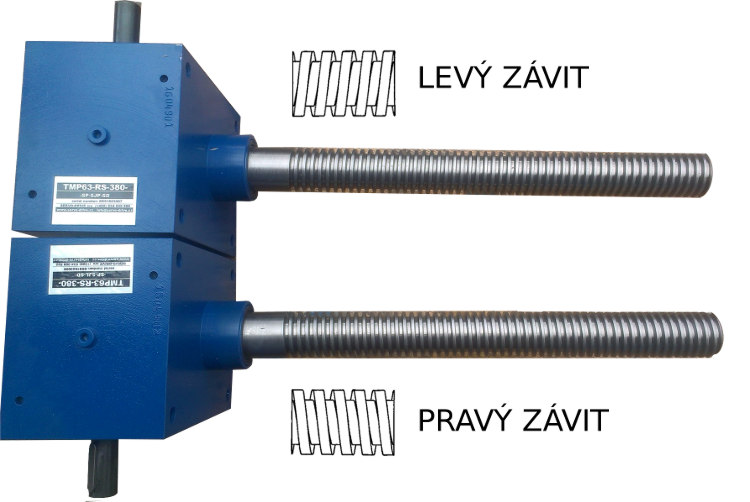

screw jack
pdf Linear Screw Jacks - ZP Series

Request Quote Request Quote Request Quote

Linear Screw Jacks with Induction Motors

přímočarý pohon
pdf Linear Screw Jacks - ZP Series

Request Quote Request Quote Request Quote

Reinforced screw, complet stainless steel version.


screw jacks for load lifting desk - tables



screw jacks with rotating screw and traveling nut on lifting tables

Synchronized Lifting


formula for 2 screw jacks
Pt=2*P1*100/95


Important calculate with space for screws traveling outside of body, for more speed is important fit free end synchronious with bevel gearboxes and cardan shafts

formula for 2 screw jacks
Pt=2*P1*100/95


Screw jacks with traveling screw, nut inside body of gearbox, screw traveling and it lifts table, Important calculate with space under screw jacks for screwed screw. synchronious with bevel gearboxes and cardan shafts

formula for 2 screw jacks and bevel gearbox
Pt=2*P1*100/85


Zdvihové převodovky s průchozím šroubem, konce pevně uchycené, tělesa převodovek se zvedají současně se stolem (plošinou) synchronizace rozvodovkami a kardany

formula for 2 screw jacks and 3 bevel gearboxes
Pt=2*P1*100/77

formula for 4 screw jacks and 3 bevel gearboxes
Pt=2*P1*100/65

formula for 4 screw jacks and 3 bevel gearboxes
Pt=2*P1*100/65

formula for 4 screw jacks and 2 bevel gearboxes
Pt=2*P1*100/69

formula for 4 screw jacks and 2 bevel gearboxes
Pt=2*P1*100/69

Examples of aplications


manipulation with running belt

Drive with lifting table

Drive of container of machine-tool

tilting drive - damper

Fit drive - hand of manipulator

Drive of tilting table of automation
