Hollow Shaft Stepper Motor - ServoDrive
Hollow Shaft ⌀3 on Stepper Motor NEMA8
Stepper Motor NEMA8 with Step Angle 1.8 Degree has Hollow Shaft diameter 3mm.
Hollow Shaft Stepper Motor NEMA8 - Performance
| Model | Voltage (V) | Current (A) | Resistance (Ohm) | Inductance (mH) | Torque (Nm) | Damping Torque (Nm) | Length (mm)
|
| NEMA8-1405-HS | 2.55 | 0.5 | 5.1 | 1.5 | 0.014 | 0.002 | 27.2
|
| NEMA8-2005-HS | 4.4 | 0.5 | 8.8 | 2.7 | 0.020 | 0.002 | 38.1 |

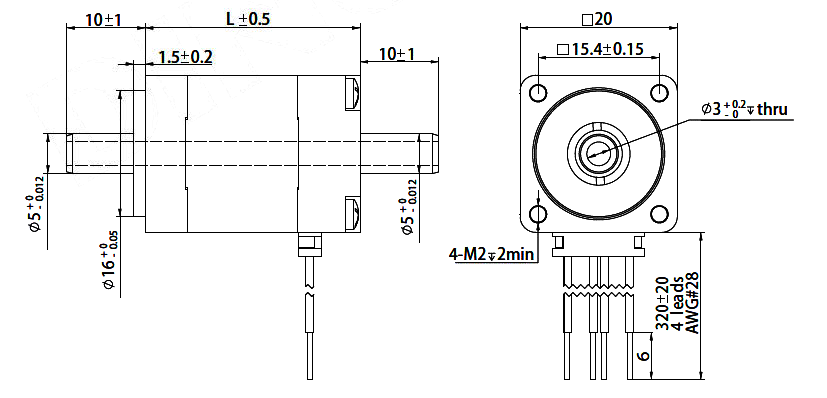

Hollow Shaft Stepper Motor NEMA8 - Dimensions
Old Series Hollow Shaft Stepper Motor Size NEMA 8

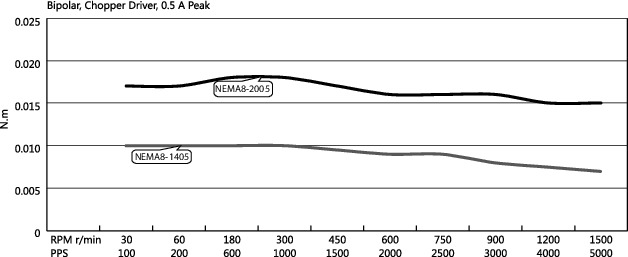

Hollow Shaft Stepper Motor NEMA8 - Torque Speed Curves
Hollow Shaft Stepper Motor NEMA8 - Request Quote
Request Quote
Hollow Shaft ⌀5 on Stepper Motor NEMA11
Stepper Motor NEMA11 with Step Angle 1.8 Degree has Hollow Shaft diameter 5mm.
Hollow Shaft Stepper Motor NEMA11 - Performance
| Model | Voltage (V) | Current (A) | Resistance (Ohm) | Inductance (mH) | Torque (Nm) | Damping Torque (Nm) | Length (mm)
|
| NEMA11-0510-HS | 2.1 | 1.0 | 2.1 | 1.5 | 0.053 | 0.004 | 33.5
|
| NEMA11-1210-HS | 4.1 | 1.0 | 4.1 | 4.0 | 0.117 | 0.004 | 45 |

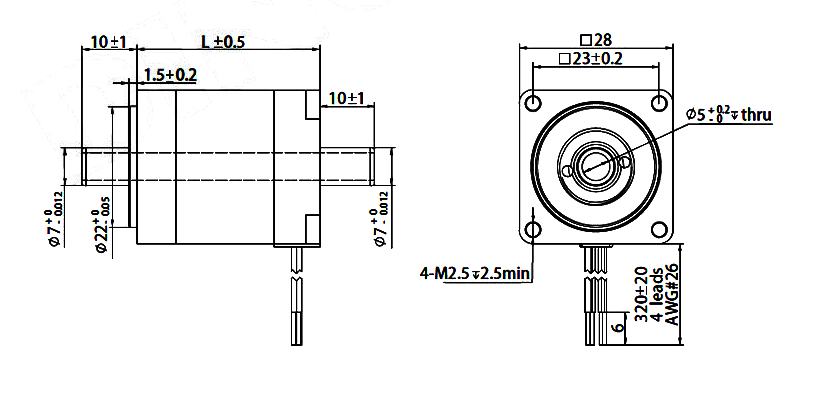

Hollow Shaft Stepper Motor NEMA11 - Dimensions
Old Series Hollow Shaft Stepper Motor Size NEMA 11

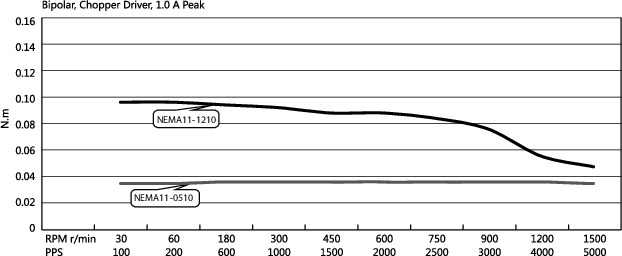

Hollow Shaft Stepper Motor NEMA11 - Torque Speed Curves
Hollow Shaft Stepper Motor NEMA11 - Request Quote
Request Quote
Hollow Shaft ⌀8 on Stepper Motor NEMA14
Stepper Motor NEMA14 with Step Angle 1.8 Degree has Hollow Shaft diameter 8mm.
Hollow Shaft Stepper Motor NEMA14 - Performance
| Model | Voltage (V) | Current (A) | Resistance (Ohm) | Inductance (mH) | Torque (Nm) | Damping Torque (Nm) | Length (mm)
|
| NEMA14-1910-HS | 3.5 | 1.0 | 3.5 | 3.6 | 0.19 | 0.008 | 33.6
|
| NEMA14-3610-HS | 6 | 1.0 | 6 | 7.2 | 0.36 | 0.013 | 45.6 |

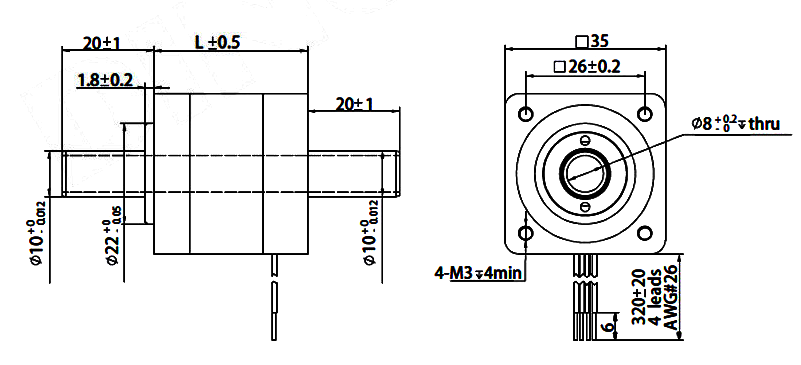

Hollow Shaft Stepper Motor NEMA14 - Dimensions
Old Series Hollow Shaft Stepper Motor Size NEMA 14

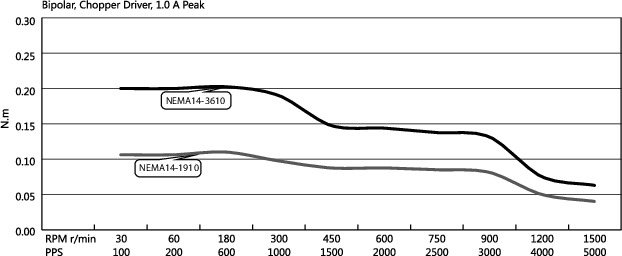

Hollow Shaft Stepper Motor NEMA14 - Torque Speed Curves
Hollow Shaft Stepper Motor NEMA14 - Request Quote
Request Quote
Hollow Shaft ⌀8 on Stepper Motor NEMA17
Stepper Motor NEMA17 with Step Angle 1.8 Degree has Hollow Shaft diameter 8mm.
Hollow Shaft Stepper Motor NEMA17 - Performance
| Model | Voltage (V) | Current (A) | Resistance (Ohm) | Inductance (mH) | Torque (Nm) | Damping Torque (Nm) | Length (mm)
|
| NEMA17-3110-HS | 3.8 | 1.0 | 3.8 | 5.0 | 0.31 | 0.014 | 34.1
|
| NEMA14-5625-HS | 2.5 | 2.5 | 1.0 | 1.8 | 0.56 | 0.018 | 48.1 |

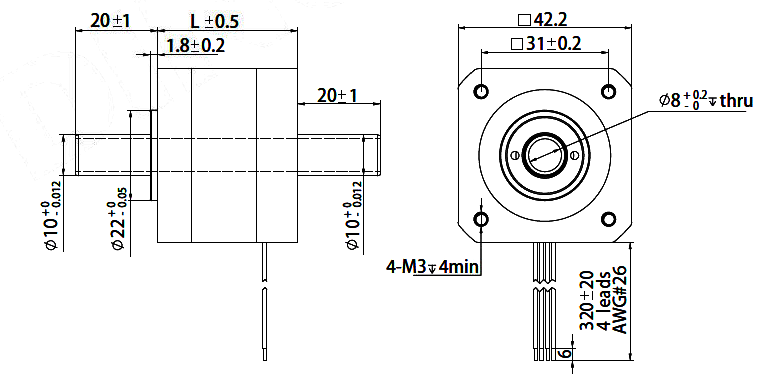

Hollow Shaft Stepper Motor NEMA17 - Dimensions
Old Series Hollow Shaft Stepper Motor Size NEMA 17

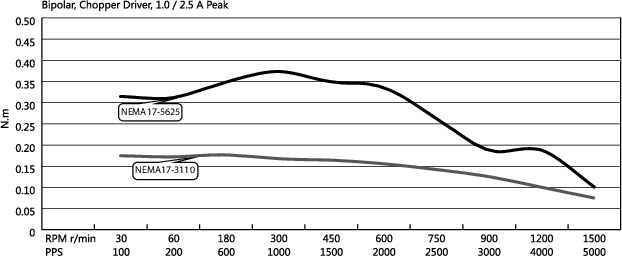

Hollow Shaft Stepper Motor NEMA17 - Torque Speed Curves
Hollow Shaft Stepper Motor NEMA17 - Request Quote
Request Quote

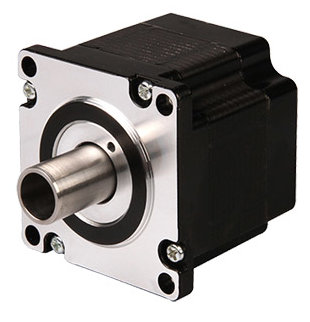

Hollow Shaft ⌀12 on Stepper Motor NEMA23
Stepper Motor NEMA23 with Step Angle 1.8 Degree has Hollow Shaft diameter 12mm.
Hollow Shaft Stepper Motor NEMA23 - Performance
| Model | Voltage (V) | Current (A) | Resistance (Ohm) | Inductance (mH) | Torque (Nm) | Damping Torque (Nm) | Length (mm)
|
| NEMA23-1220-HS | 3.5 | 2.0 | 1.75 | 4.1 | 1.2 | 0.020 | 45
|
| NEMA23-2125-HS | 5.0 | 2.5 | 2.0 | 5.2 | 2.1 | 0.040 | 65 |

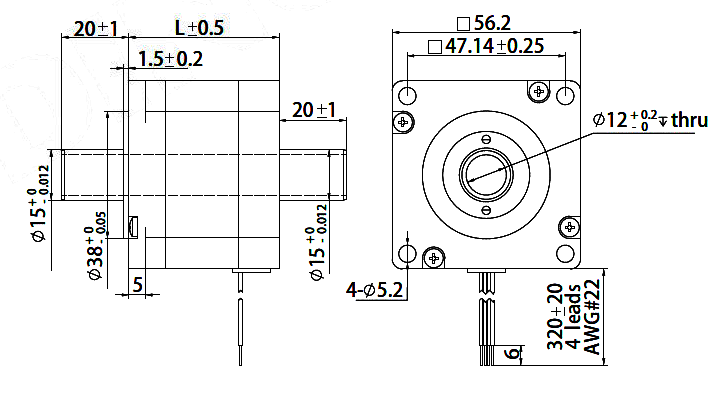

Hollow Shaft Stepper Motor NEMA23 - Dimensions
Old Series Hollow Shaft Stepper Motor Size NEMA 23

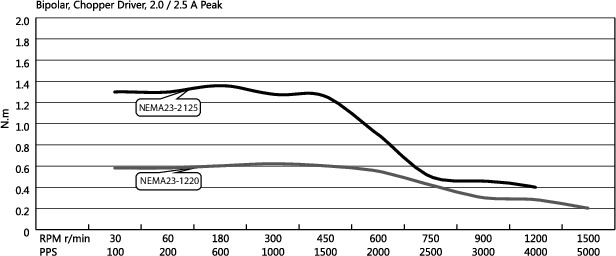

Hollow Shaft Stepper Motor NEMA23 - Torque Speed Curves
Mounting options for NEMA23 hollow shaft stepper motor
Hollow Shaft Stepper Motor NEMA23 - Request Quote
Request Quote
Hollow Shaft ⌀16 on Stepper Motor NEMA34
Stepper Motor NEMA23 with Step Angle 1.8 Degree has Hollow Shaft diameter 16mm.
Hollow Shaft Stepper Motor NEMA34 - Performance
| Model | Voltage (V) | Current (A) | Resistance (Ohm) | Inductance (mH) | Torque (Nm) | Damping Torque (Nm) | Length (mm)
|
| NEMA34-4530-HS | 5.7 | 3.0 | 1.9 | 19 | 4.5 | 0.095 | 76 |

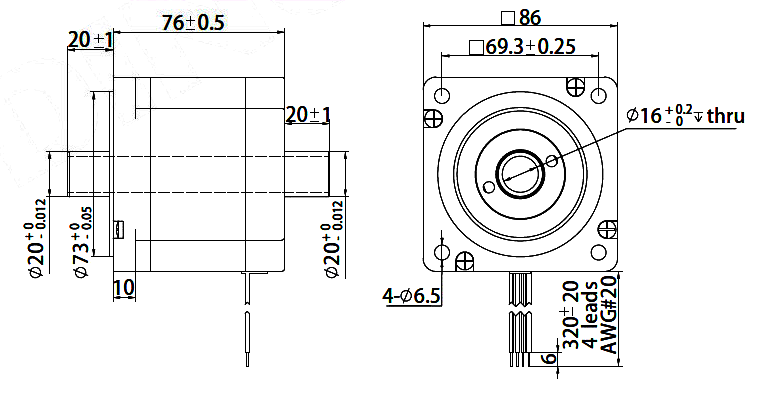

Hollow Shaft Stepper Motor NEMA34 - Dimensions
Old Series Hollow Shaft Stepper Motor Size NEMA 34

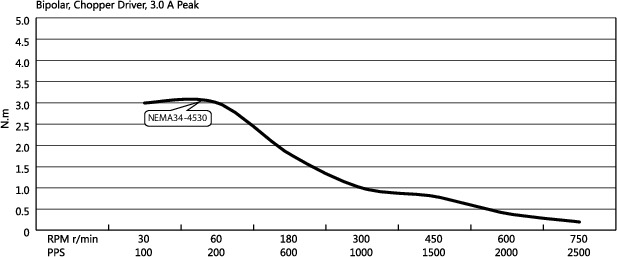

Hollow Shaft Stepper Motor NEMA34 - Torque Speed Curves
Hollow Shaft Stepper Motor NEMA34 - Request Quote
Request Quote
High resolution Hollow Shaft Stepper Motor
Hollow Shaft Stepper Motor - ⌀11 Hole Through and Step Angle 0,9°
- Very smooth and quiet operation
- Large THRU Hole Design
- High Step Accuracy
- Holding torque up to 0,12 Nm
- High Quality Stepper Motors Production
Available Options:
- Options Custom Windings Available ( No additional cost)
- Options Connectorized Lead
Hollow Shaft Stepper Motor - Performance
| Model | Torque | Current | Flange | Length | Resistance | Inductance | Inertia | Weight | Leads
|
| - | Nm | A | mm | mm | Ohm | mH | kg.cm^2 | kg | -
|
| NEMA17-1103-HS-09DEG | 0,11 | 1,2 | 42x42 | 27,9 | 3 | 2,2 | 0,01281 | 0,140585 | 4
|
| NEMA17-1106-HS-09DEG | 0,11 | 0,8 | 42x42 | 27,9 | 7 | 5,1 | 0,01281 | 0,140585 | 4
|
| NEMA17-1109-HS-09DEG | 0,11 | 0,8 | 42x42 | 27,9 | 10 | 6,9 | 0,01281 | 0,140585 | 4
|
| NEMA17-1118-HS-09DEG | 0,11 | 0,6 | 42x42 | 27,9 | 10 | 7,1 | 0,01281 | 0,140585 | 4 |

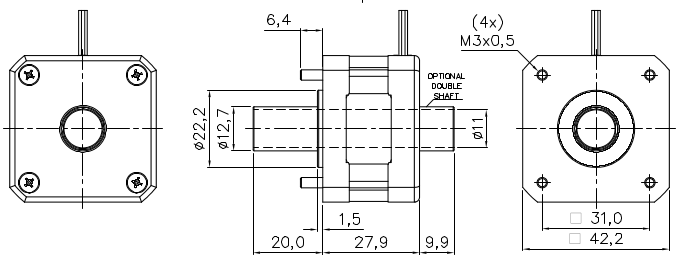

Hollow Shaft Stepper Motor - Dimensions
High Resolution Hollow Shaft Stepper Motor - Request quote
Request Quote
Hollow Shaft Stepper Motor Encoder - Dimensions
High Resolution Hollow Shaft Stepper Motor with Encoder - Request quote
