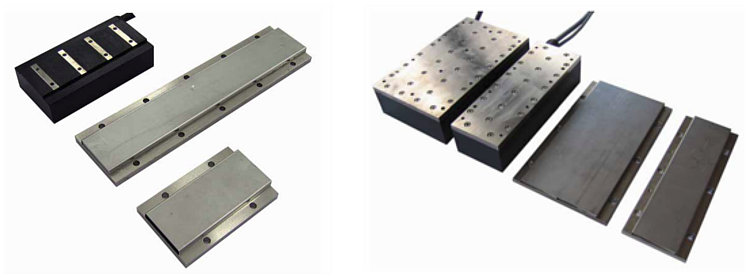

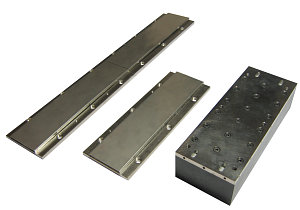

Linear motors - Ironcore Linear Permanent Magnet Motors

Ironcore Linear Motor ACM Series Features:

Iron Core, Brushless Direct Drive Linear Motor
Iron core, direct drive brushless linear motors
Low cogging design

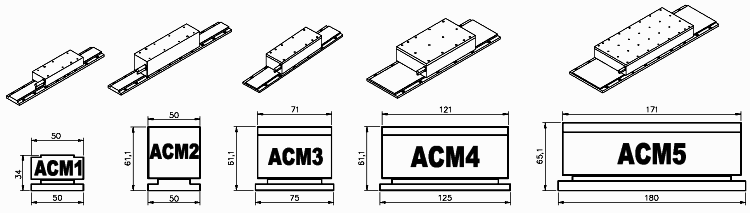

4 models (ACM2, 3, 4, 5) with coil lengths from 200 mm to 704 mm
Maximum peak force of 10,500 N, maximum continuous force 7,300 N
High efficiency (high Km)
Integrated with Hall sensors
Integrated thermal protection
Serial/Paralel winding customization possible
serial for high speed, paralel for high force
Customizable cable orientation and cable lenght

Ironcore Linear Motor Performance Table:

ACM1-S30

ACM1-S50

ACM1-S100

ACM2-S1

ACM2-S2

ACM3-S1

ACM3-S2

ACM4-S1

ACM4-S2

ACM5-S2

ACM5-S4

Continuous Force

174

168

336

293

586

1171

1757

3514

Peak Force

242

416

794

456

913

878

1757

3514

5270

10541

Motor Constant

N/(W)^1/2

115

Continous Power

148

208

417

Peak Power

350

525

894

664

1327

396

793

667

1335

1875

3749

Mag. Period

Max. Temp.

130

Continous Current

2,1

5,3

10,6

5,3

10,6

5,3

10,6

Peak Current

Force Constant

N/A

122

183

366

Back EMF Const.

V/ms^-1

15,1

49,6

36,6

73,2

109,8

219,6

Phase Induct.

13,5

20,8

36,4

114

Phase Resist.

Ohm

3,8

5,7

9,7

3,2

1,6

4,3

2,15

7,2

3,6

5,1

10,2

Attraction Mag. Force

480

825

1575

0,75

1,5

1,45

2,9

5,8

8,7

17,4

Length

125

200

368

200

368

200

368

368,9

704

Weight

0,6

0,9

1,5

2,4

4,8

3,5

6,7

13,3

Request Quote
