Single Guide Linear Axis - SGL series
Features:
- Peak Force up to 1000 N
- Max. speed 5 m/s
- Accelerations up to 80m/s2 (8g)
- Strokes from 200mm up to 2,5m
- Direct drive
- no cogging
- zero backlash
- ironless linear motor
- Linear encoder resolutions from 5 to 0,1 micrometer
- Linear guidance one side, compact construction
Unique Advantages:
- Excellent force/size ratio
- Very light moving plate
- Compact, simple design with minimum parts
- Low noise type runner blocks ensures low noise even at high speeds
- Precise homing through encoder index pulse

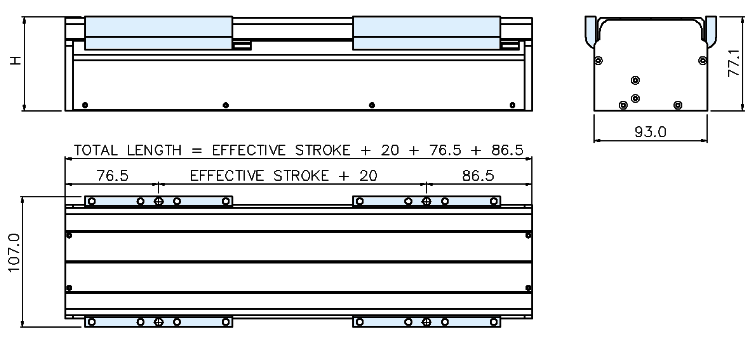

Dimensional drawing :
Overview table :
| Model | Stroke | Length | H |
| - | mm | mm | mm |
| SGL80-xx-200 | 200 | 383 | 77,1 |
| SGL80-xx-300 | 300 | 483 | 77,1 |
| SGL80-xx-400 | 400 | 583 | 77,1 |
| SGL80-xx-500 | 500 | 683 | 77,1 |
| SGL80-xx-600 | 600 | 783 | 77,1 |
| SGL80-xx-1000 | 1000 | 1183 | 77,1 |
| SGL80-xx-1200 | 1200 | 1383 | 77,1 |
| SGL80-xx-1500 | 1500 | 1683 | 87,1 |
| SGL80-xx-2000 | 2000 | 2183 | 87,1 |
| SGL80-xx-2500 | 2500 | 2683 | 87,1 |
| Model | Encoder Resolution |
| - | micrometer |
| SGL 80-Sx-xxxx-01 | 0,1 |
| SGL 80-Sx-xxxx-10 | 1,0 |
| SGL 80-Sx-xxxx-50 | 5,0 |
| Model | Fmax | Fcont | m |
| - | N | N | kg |
| SGL 80-S2 | 88 | 22 | 0,86 |
| SGL 80-S3 | 132 | 33 | 0,92 |
| SGL 80-S4 | 176 | 44 | 1,00 |
| SGL 100-S2 | 288 | 72 | 1,50 |
| SGL 100-S3 | 432 | 108 | 1,90 |
| SGL 100-S4 | 576 | 144 | 2,40 |
| SGL 120-S2 | 488 | 112 | 1,50 |
| SGL 120-S3 | 672 | 168 | 1,90 |
| SGL 120-S4 | 896 | 224 | 2,40 |
Dual Guide Linear Axis - DGL series
Features:
- Peak Force up to 1000 N
- Max. speed 5 m/s
- Accelerations up to 80m/s2 (8g)
- Strokes from 200mm up to 2,5m
- Direct drive
- no cogging
- zero backlash
- ironless linear motor
- Linear encoder resolutions from 5 to 0,1 micrometer
- High quality dual size 15 linear guidance
Unique Advantages:
- Excellent force/size ratio
- Very light moving plate
- Compact, simple design with minimum parts
- Low noise type runner blocks ensures low noise even at high speeds
- Precise homing through encoder index pulse

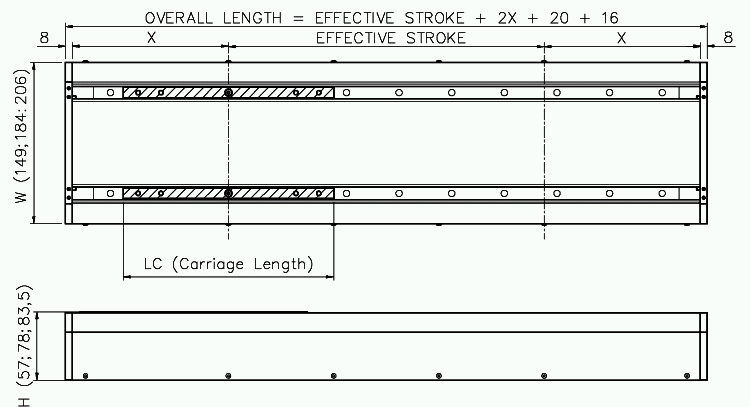

Dimensional drawing :
Overview table :
| Model | Peak force | Continous force |
LC | W | H | X |
| - | N | N | mm | mm | mm | mm |
| DGL150-S2 | 73 | 22 | 125 | 149 | 57 | 88,5 |
| DGL150-S3 | 110 | 32 | 150 | 149 | 57 | 101 |
| DGL150-S4 | 146 | 43 | 175 | 149 | 57 | 113,5 |
| DGL180-S2 | 270 | 72 | 180 | 184 | 78 | 122 |
| DGL180-S3 | 405 | 108 | 240 | 184 | 78 | 152 |
| DGL180-S4 | 540 | 144 | 300 | 184 | 78 | 182 |
| DGL200-S2 | 459 | 110 | 180 | 206 | 83,5 | 130 |
| DGL200-S3 | 688 | 165 | 240 | 206 | 83,5 | 160 |
| DGL200-S4 | 918 | 220 | 300 | 206 | 83,5 | 190 |
