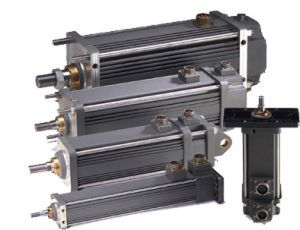

Servo Actuators Features:

• Inverted Roller Screw Actuator
• Very high load rating (up to 300 kN)
• Very high speeds (up to 1500 mm/s)
• Many times greater Life Time than ball screws
• Very high accelerations (up to 2g)
• Easy electronic positioning (integrated AC servomotor)
• Very high stiffness and shock resistance
• Compact design, minimal space requirements
• Very low friction , efficiency over 90%
• Compactible with standard servo electronics
• Very low maintenance required

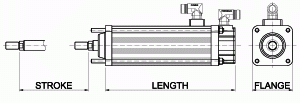

Linear Actuators Performance - Overview Table :

Model	Flange	Stroke	Fmax	FN	vmax	m
-	mm	mm	kN	kN	mm/s	kg
GSM20	57	76 .. 305	5	2,5	846	3 .. 4
GSM30	84	76 .. 457	12	6	635	4 .. 11
GSM40	99	152 .. 457	34	17	952	9 .. 20
GSX20	57	76 .. 305	5	2,5	846	3 .. 4
GSX30	79	76 .. 457	12	6	635	4 .. 11
GSX40	99	152 .. 457	34	17	953	9 .. 20
GSX50	127	152 .. 356	80	40	508	24 .. 32
GSX60	178	152 .. 254	110	55	1018	31 .. 46

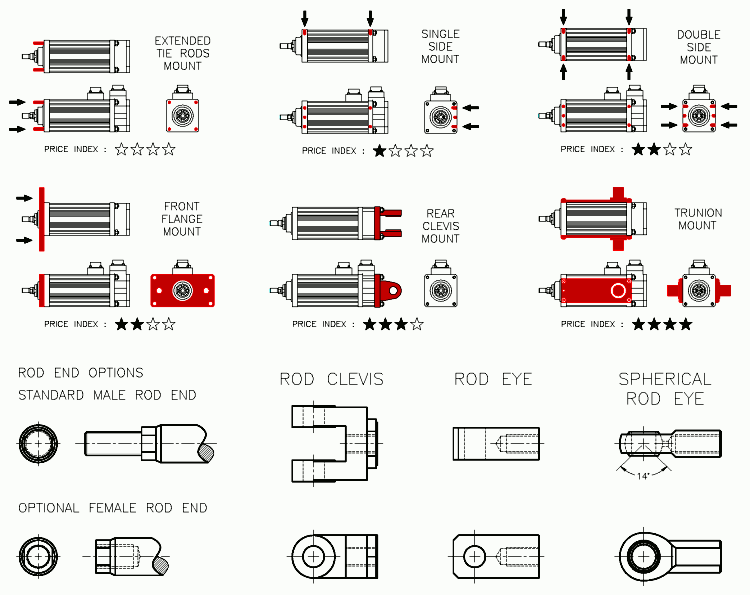

Mounting Options :

Servoactuators are available in 6 main mounting options. Standard version is a EXTENDED TIE RODS mounting. It provides cost effective and suitable mounting for most applications.

---

Linear Servo Actuators GSM20 Series - Performance data

Model No.	Frame Size	Stroke	Screw Lead	Force Rating 1 or 2 Stack	Max Velocity	Cont Motor Torque 1 or 2 Stack	Max Static Load	Armature Inertia	Dynamic Load Rating	Weight (approx,)
	mm	mm	mm	N	mm/sec	Nm	N	kgm2	N	Kg
GSM20-0301	57	76	2,54	1632 / 2571	211,67	0,82 / 1,30	3336	0,000114	6970	2,9
GSM20-0302	57	76	5,08	814 / 1286	423,33	0,82 / 1,30	3336	0,000114	5422	2,9
GSM20-0304	57	76	10,16	409 / 645	846,67	0,82 / 1,30	3336	0,000114	3283	2,9
GSM20-0601	57	152	2,54	1632 / 2571	211,67	0,82 / 1,30	3336	0,000129	6970	3,2
GSM20-0602	57	152	5,08	814 / 1286	423,33	0,82 / 1,30	3336	0,000129	5422	3,2
GSM20-0604	57	152	10,16	409 / 645	846,67	0,82 / 1,30	3336	0,000129	3283	3,2
GSM20-1001	57	254	2,54	1632 / 2571	211,67	0,82 / 1,30	3336	0,00015	6970	3,4
GSM20-1002	57	254	5,08	814 / 1286	423,33	0,82 / 1,30	3336	0,00015	5422	3,4
GSM20-1004	57	254	10,16	409 / 645	846,67	0,82 / 1,30	3336	0,00015	3283	3,4
GSM20-1201	57	304	2,54	1632 / 2571	211,67	0,82 / 1,30	3336	0,000162	6970	3,6
GSM20-1202	57	304	5,08	814 / 1286	423,33	0,82 / 1,30	3336	0,000162	5422	3,6
GSM20-1204	57	304	10,16	409 / 645	846,67	0,82 / 1,30	3336	0,000162	3283	3,6

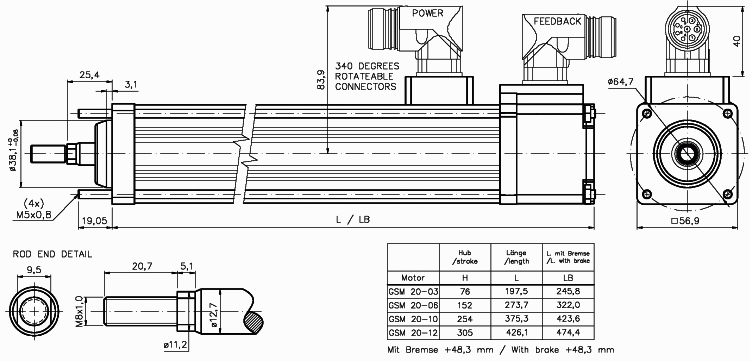

Linear Servo Actuators GSM20 Series - Dimensions

"EXTENDED TIE RODS" Mounting version only. All versions here.

---

Linear Servo Actuators GSM30 Series - Performance data

Model No.	Frame Size	Stroke	Screw Lead	Force Rating 1 or 2 Stack	Max Velocity	Cont Motor Torque 1 or 2 Stack	Max Static Load	Armature Inertia	Dynamic Load Rating	Weight (approx,)
	mm	mm	mm	N	mm/sec	Nm	N	kgm2	N	Kg
GSM30-0301	84	76	2,54	3688 / 5992	127	1,86 / 3,03	7206	0,00036	14724	4,3
GSM30-0302	84	76	5,08	1846 / 2998	254	1,86 / 3,03	7206	0,00036	15880	4,3
GSM30-0305	84	76	12,7	738 / 1197	635	1,86 / 3,03	7206	0,00036	13416	4,3
GSM30-0601	84	150	2,54	3688 / 5992	127	1,86 / 3,03	7206	0,000408	14724	5,2
GSM30-0602	84	150	5,08	1846 / 2998	254	1,86 / 3,03	7206	0,000408	15880	5,2
GSM30-0605	84	150	12,7	738 / 1197	635	1,86 / 3,03	7206	0,000408	13416	5,2
GSM30-1001	84	254	2,54	3688 / 5992	127	1,86 / 3,03	7206	0,00047	14724	8,6
GSM30-1002	84	254	5,08	1846 / 2998	254	1,86 / 3,03	7206	0,00047	15880	8,6
GSM30-1005	84	254	12,7	738 / 1197	635	1,86 / 3,03	7206	0,00047	13416	8,6
GSM30-1201	84	305	2,54	3688 / 5992	127	1,86 / 3,03	7206	0,000501	14724	10
GSM30-1202	84	305	5,08	1846 / 2998	254	1,86 / 3,03	7206	0,000501	15880	10
GSM30-1205	84	305	12,7	738 / 1197	635	1,86 / 3,03	7206	0,000501	13416	10
GSM30-1801	84	457	2,54	3688 / 5992	127	1,86 / 3,03	7206	0,000602	14724	11,3
GSM30-1802	84	457	5,08	1846 / 2998	254	1,86 / 3,03	7206	0,000602	15880	11,3
GSM30-1805	84	457	12,7	738 / 1197	635	1,86 / 3,03	7206	0,000602	13416	11,3

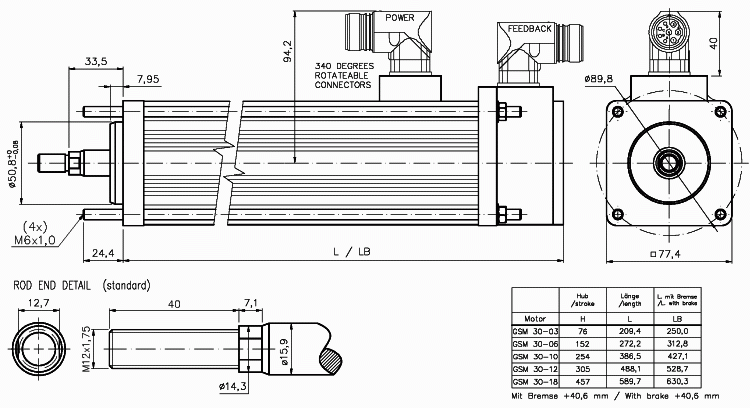

Linear Servo Actuators GSM30 Series - Dimensions

"EXTENDED TIE RODS" Mounting version only. All versions here.

---

Linear Servo Actuators GSM40 Series - Performance data

Model No.	Frame Size	Stroke	Screw Lead	Force Rating 1 or 2 Stack	Max Velocity	Cont Motor Torque 1 or 2 Stack	Max Static Load	Armature Inertia	Dynamic Load Rating	Weight (approx,)
	mm	mm	mm	N	mm/sec	Nm	N	kgm2	N	Kg
GSM40-0601	99	152	2,54	10645 / 17642	127	5,38 / 8,91	17642	0,001717	21067	9,1
GSM40-0602	99	152	5,08	5320 / 8821	254	5,38 / 8,91	17642	0,001717	21751	9,1
GSM40-0605	99	152	12,7	2131 / 3527	635	5,38 / 8,91	17642	0,001717	18763	9,1
GSM40-0608	99	152	19,05	1419 / 2353	953	5,38 / 8,91	17642	0,001717	14804	9,1
GSM40-1001	99	254	2,54	10645 / 17642	127	5,38 / 8,91	17642	0,001977	21067	12,7
GSM40-1002	99	254	5,08	5320 / 8821	254	5,38 / 8,91	17642	0,001977	21751	12,7
GSM40-1005	99	254	12,7	2131 / 3527	635	5,38 / 8,91	17642	0,001977	18763	12,7
GSM40-1008	99	254	19,05	1419 / 2353	953	5,38 / 8,91	17642	0,001977	14804	12,7
GSM40-1201	99	305	2,54	10645 / 17642	127	5,38 / 8,91	17642	0,002102	21067	14,5
GSM40-1202	0	305	5,08	5320 / 8821	254	5,38 / 8,91	17642	0,002102	21751	14,5
GSM40-1205	99	305	12,7	2131 / 3527	635	5,38 / 8,91	17642	0,002102	18763	14,5
GSM40-1208	99	305	19,05	1419 / 2353	953	5,38 / 8,91	17642	0,002102	14804	14,5
GSM40-1801	99	457	2,54	10645 / 17642	127	5,38 / 8,91	17642	0,002486	21067	20
GSM40-1802	99	457	5,08	5320 / 8821	254	5,38 / 8,91	17642	0,002486	21751	20
GSM40-1805	99	457	12,7	2131 / 3527	635	5,38 / 8,91	17642	0,002486	18763	20

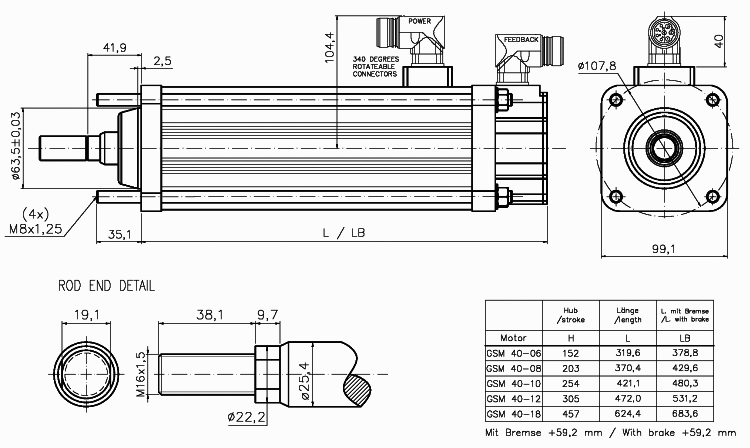

Linear Servo Actuators GSM40 Series - Dimensions

"EXTENDED TIE RODS" Mounting version only. All versions here.

---

Linear Servo Actuators GSX20 Series - Performance data

Model No.	Frame Size	Stroke	Screw Lead	Force Rating 1/2/3 Stack	Max Velocity	Cont Motor Torque 1/2/3 Stack	Max Static Load	Armature Inertia	Dynamic Load Rating	Weight (approx,)
	mm	mm	mm	N	mm/sec	Nm	N	kgm2	N	Kg
GSX20-0301	57	76	2,54	1632 / 2571 / NA	212	0,82 / 1,30 / NA	5560	0,000114	9230	2,9
GSX20-0302	57	76	5,08	814 / 1286 / NA	423	0,82 / 1,30 / NA	5560	0,000114	6850	2,9
GSX20-0304	57	76	10,16	409 / 645 / NA	847	0,82 / 1,30 / NA	5560	0,000114	5471	2,9
GSX20-0601	57	152	2,54	1632 / 2571 / NA	212	0,82 / 1,30 / NA	5560	0,000129	9230	3,6
GSX20-0602	57	152	5,08	814 / 1286 / 1713	423	0,82 / 1,30 / 1,73	5560	0,000129	6850	3,6
GSX20-0604	57	152	10,16	409 / 645 / 854	847	0,82 / 1,30 / 1,73	5560	0,000129	5471	3,6
GSX20-1001	57	250	2,54	1632 / 2571 / NA	212	0,82 / 1,30 / NA	5560	0,00015	9230	4,3
GSX20-1002	57	250	5,08	814 / 1286 / 1713	423	0,82 / 1,30 / 1,73	5560	0,00015	6850	4,3
GSX20-1004	57	250	10,16	409 / 645 / 854	847	0,82 / 1,30 / 1,73	5560	0,00015	5471	4,3
GSX20-1201	57	304	2,54	1632 / 2571 / NA	212	0,82 / 1,30 / NA	5560	0,000162	9230	4,9
GSX20-1202	57	304	5,08	814 / 1286 / 1713	423	0,82 / 1,30 / 1,73	5560	0,000162	6850	4,9
GSX20-1204	57	304	10,16	409 / 645 / 854	847	0,82 / 1,30 / 1,73	5560	0,000162	5471	4,9

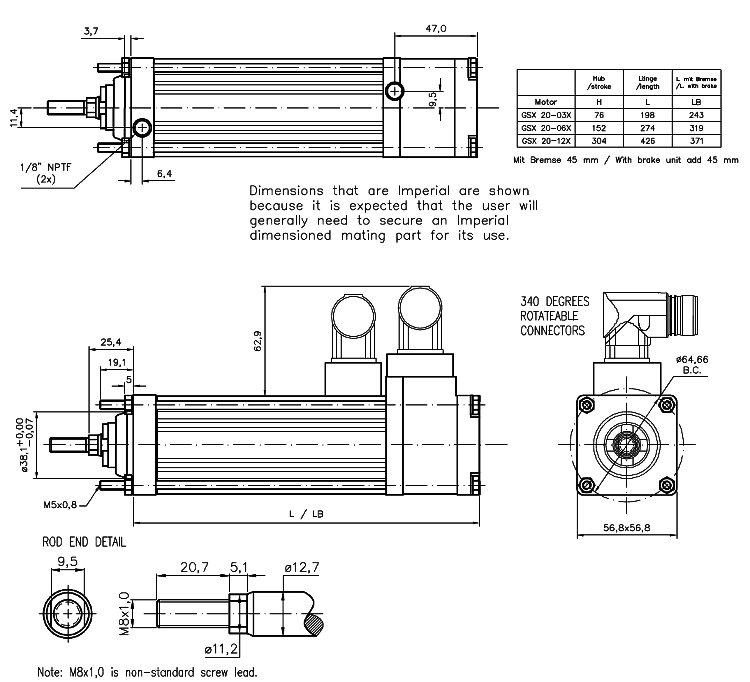

Linear Servo Actuators GSX20 Series - Dimensions

"EXTENDED TIE RODS" Mounting version only. All versions here.

---

Linear Servo Actuators GSX30 Series - Performance data

Model No.	Frame Size	Stroke	Screw Lead	Force Rating 1/2/3 Stack	Max Velocity	Cont Motor Torque 1/2/3 Stack	Max Static Load	Armature Inertia	Dynamic Load Rating	Weight (approx,)
	mm	mm	mm	N	mm/sec	Nm	N	kgm2	N	Kg
GSX30-0301	79	76	2,54	3688 / 5992 / NA	127	1,86 / 3,03 / NA	12010	0,00036	24536)	4,3
GSX30-0302	79	76	5,08	1846 / 2998 / NA	254	1,86 / 3,03 / NA	12010	0,00036	25798	4,3
GSX30-0305	79	76	12,7	738 / 1197 / NA	635	1,86 / 3,03 / NA	12010	0,00036	21795	4,3
GSX30-0601	79	150	2,54	3688 / 5992 / NA	127	1,86 / 3,03 / NA	12010	0,000408	24536)	5,2
GSX30-0602	79	150	5,08	1846 / 2998 / 4026	254	1,86 / 3,03 / 4,07	12010	0,000408	25798	5,2
GSX30-0605	79	150	12,7	738 / 1197 / 1610	635	1,86 / 3,03 / 4,07	12010	0,000408	21795	5,2
GSX30-1001	79	254	2,54	3688 / 5992 / NA	127	1,86 / 3,03 / NA	12010	0,00047	24536)	8,6
GSX30-1002	79	254	5,08	1846 / 2998 / 4026	254	1,86 / 3,03 / 4,07	12010	0,00047	25798	8,6
GSX30-1005	79	254	12,7	738 / 1197 / 1610	635	1,86 / 3,03 / 4,07	12010	0,00047	21795	8,6
GSX30-1201	79	305	2,54	3688 / 5992 / NA	127	1,86 / 3,03 / NA	12010	0,000501	24536	9,3
GSX30-1202	79	305	5,08	1846 / 2998 / 4026	254	1,86 / 3,03 / 4,07	12010	0,000501	25798	9,3
GSX30-1205	79	305	12,7	738 / 1197 / 1610	635	1,86 / 3,03 / 4,07	12010	0,000501	21795	9,3
GSX30-1402	79	356	5,08	1846 / 2998 / 4026	254	1,86 / 3,03 / 4,07	12010	0,000534	25798	9,3
GSX30-1405	79	356	12,7	738 / 1197 / 1610	635	1,86 / 3,03 / 4,07	12010	0,000534	21795	9,3
GSX30-1802	79	457	5,08	1846 / 2998 / 4026	254	1,86 / 3,03 / 4,07	12010	0,000602	25798	11,3
GSX30-1805	79	457	12,7	738 / 1197 / 1610	635	1,86 / 3,03 / 4,07	12010	0,000602	21795	11,3

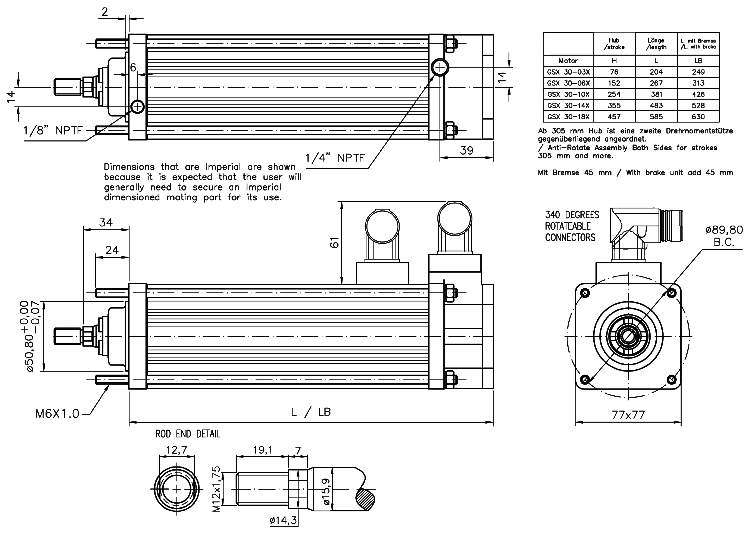

Linear Servo Actuators GSX30 Series - Dimensions

"EXTENDED TIE RODS" Mounting version only. All versions here.

---

Linear Servo Actuators GSX40 Series - Performance data

Model No.	Frame Size	Stroke	Screw Lead	Force Rating 1/2/3 Stack	Max Velocity	Cont Motor Torque 1/2/3 Stack	Max Static Load	Armature Inertia	Dynamic Load Rating	Weight (approx,)
	mm	mm	mm	N	mm/sec	Nm	N	kgm2	N	Kg
GSX40-0601	99	152	2,54	10645 / 17642 / NA	127	5,38 / 8,91 / NA	24020	0,001717	35141	9,1
GSX40-0602	99	152	5,08	5320 / 8821 / NA	254	5,38 / 8,91 / NA	24020	0,001717	36920	9,1
GSX40-0605	99	152	12,7	2131 / 3527 / NA	635	5,38 / 8,91 / NA	24020	0,001717	31271	9,1
GSX40-0608	99	152	19,05	1419 / 2353 / 3194	953	5,38 / 8,91 / 12,1	24020	0,001717	28179	9,1
GSX40-0801	99	203	2,54	10645 / 17642 / NA	127	5,38 / 8,91 / NA	24020	0,001842	35141	10,9
GSX40-0802	99	203	5,08	5320 / 8821 / 11975	254	5,38 / 8,91 / 12,1	24020	0,001842	36920	10,9
GSX40-0805	99	203	12,7	2131 / 3527 / 4791	635	5,38 / 8,91 / 12,1	24020	0,001842	31271	10,9
GSX40-0808	99	203	19,05	1419 / 2353 / 3194	953	5,38 / 8,91 / 12,1	24020	0,001842	28179	10,9
GSX40-1001	99	254	2,54	10645 / 17642 / NA	127	5,38 / 8,91 / NA	24020	0,001972	35141	12,7
GSX40-1002	99	254	5,08	5320 / 8821 / 11975	254	5,38 / 8,91 / 12,1	24020	0,001972	36920	12,7
GSX40-1005	99	254	12,7	2131 / 3527 / 4791	635	5,38 / 8,91 / 12,1	24020	0,001972	31271	12,7
GSX40-1008	99	254	19,05	1419 / 2353 / 3194	953	5,38 / 8,91 / 12,1	24020	0,001972	28179	12,7
GSX40-1201	99	305	2,54	10645 / 17642 / NA	127	5,38 / 8,91 / NA	24020	0,002102	35141	14,5
GSX40-1202	99	305	5,08	5320 / 8821 / 11975	254	5,38 / 8,91 / 12,1	24020	0,002102	36920	14,5
GSX40-1205	99	305	12,7	2131 / 3527 / 4791	635	5,38 / 8,91 / 12,1	24020	0,002102	31271	14,5
GSX40-1208	99	305	19,05	1419 / 2353 / 3194	953	5,38 / 8,91 / 12,1	24020	0,002102	28179	14,5
GSX40-1802	99	457	5,08	5320 / 8821 / 11975	254	5,38 / 8,91 / 12,1	24020	0,002486	36920	20
GSX40-1805	99	457	12,7	2131 / 3527 / 4791	635	5,38 / 8,91 / 12,1	24020	0,002486	31271	20

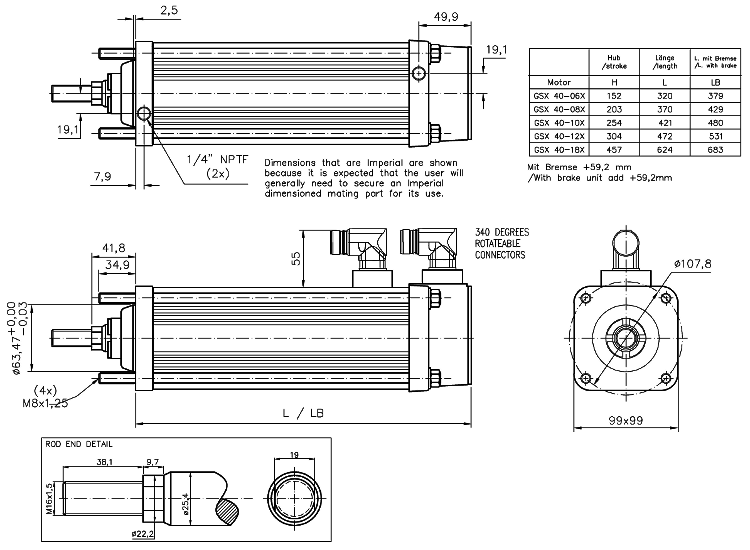

Linear Servo Actuators GSX40 Series - Dimensions

"EXTENDED TIE RODS" Mounting version only. All versions here.

---

Linear Servo Actuators GSX50 Series - Performance data

Model No.	Frame Size	Stroke	Screw Lead	Force Rating 1/2/3 Stack	Max Velocity	Cont Motor Torque 1/2/3 Stack	Max Static Load	Armature Inertia	Dynamic Load Rating	Weight (approx,)
	mm	mm	mm	N	mm/sec	Nm	N	kgm2	N	Kg
GSX50-0601	127	152	2,54	22806 / 38006 / NA	102	11,5 / 19,2 / NA	58717	0,003662	69806	24
GSX50-0602	127	152	5,08	11405 / 19003 / NA	203	11,5 / 19,2 / NA	58717	0,003662	58703	24
GSX50-0605	127	152	12,7	4564 / 7620 / NA	508	11,5 / 19,2 / NA	58717	0,003662	51848	24
GSX50-0610	127	152	25,4	2282 / 3803 / NA	102	11,5 / 19,2 / NA	58717	0,003662	28304	24
GSX50-1001	127	254	2,54	22806 / 38006 / NA	102	11,5 / 19,2 / NA	58717	0,004209	69806	28
GSX50-1002	127	254	5,08	11405 / 19003 / NA	203	11,5 / 19,2 / NA	58717	0,004209	58703	28
GSX50-1005	127	254	12,7	4564 / 7620 / 10057	508	11,5 / 19,2 / NA	58717	0,004209	51848	28
GSX50-1010	127	254	25,4	2282 / 3803 / 5031	1016	11,5 / 19,2 / NA	58717	0,004209	28304	28
GSX50-1402	127	356	5,08	11405 / 19003 / 25155	203	11,5 / 19,2 / NA	58717	0,004754	58703	32
GSX50-1405	127	356	12,7	4564 / 7620 / 10057	508	11,5 / 19,2 / NA	58717	0,004754	51848	32

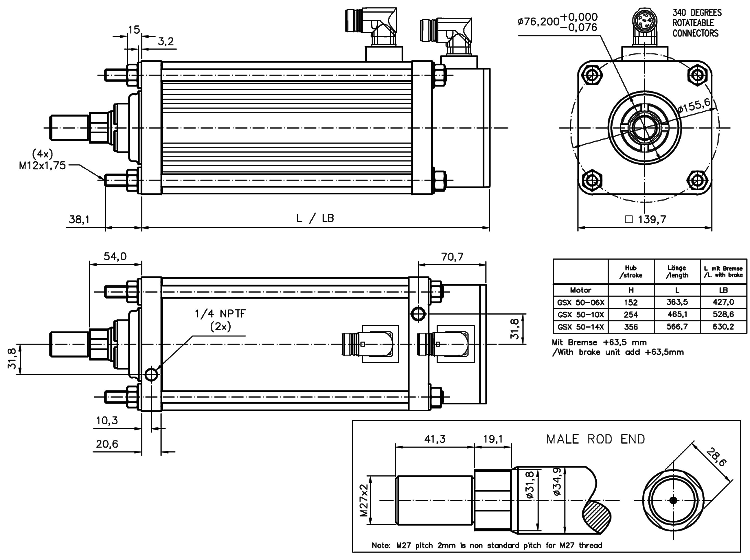

Linear Servo Actuators GSX50 Series - Dimensions

"EXTENDED TIE RODS" Mounting version only. All versions here.

---

Linear Servo Actuators GSX60 Series - Performance data

Model No.	Frame Size	Stroke	Screw Lead	Force Rating 1/2/3 Stack	Max Velocity	Cont Motor Torque 1/2/3 Stack	Max Static Load	Armature Inertia	Dynamic Load Rating	Weight (approx,)
	mm	mm	mm	N	mm/sec	Nm	N	kgm2	N	Kg
GSX60-0603	178	152	6,35	22677 / NA / NA	254	27 / NA / NA	111200	0,019614	112540	31
GSX60-0605	178	152	12,7	11339 / NA / NA	508	27 / NA / NA	111200	0,019614	101420	31
GSX60-0610	178	152	25,4	5671 / NA / NA	1018	27 / NA / NA	111200	0,019614	94302	31
GSX60-1003	178	254	6,35	22677 / 38504 / 55109	254	27 / 46 / 66	111200	0,021953	112540	46
GSX60-1005	178	254	12,7	11339 / 19252 / 27557	508	27 / 46 / 66	111200	0,021953	101420	46
GSX60-1010	178	254	25,4	5671 / 9626 / 13776	1018	27 / 46 / 66	111200	0,021953	94302	46

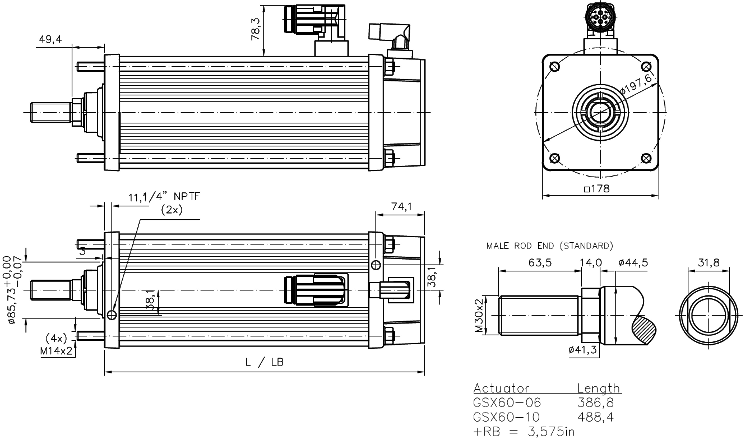

Linear Servo Actuators GSX60 Series - Dimensions

"EXTENDED TIE RODS" Mounting version only. All versions here.

---

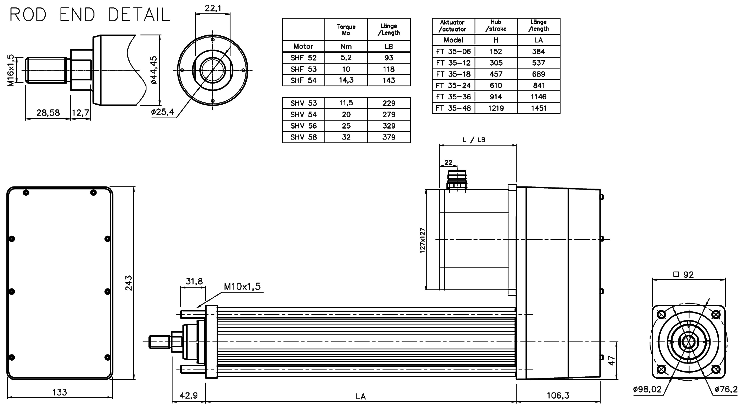

Linear Servo Actuators FT35 Series - Performance data

Model No.	Frame Size	Stroke	Screw Lead	Max, Linear Speed	Dynamic Load Rating	Torque at Rated Force	Screw Inertia	Max, Force*	Max, Rot, Speed	Weight Base Unit
	mm	mm	mm	mm / sec	kN	Nm	kgm2	kN	rpm	kg
FT35-0605	89	152	5	373	47,5	17	0,00021	17,8	4500	14
FT35-0610	89	152	10	750	38,5	34	0,00021	17,8	4500	14
FT35-0620	89	152	20	1500	31,5	68	0,00021	17,8	4500	14
FT35-1205	89	304	5	373	47,5	17	0,00031	17,8	4500	16
FT35-1210	89	304	10	750	38,5	34	0,00031	17,8	4500	16
FT35-1220	89	304	20	1500	31,5	68	0,00031	17,8	4500	16
FT35-1805	89	457	5	373	47,5	17	0,0004	17,8	4500	18
FT35-1810	89	457	10	750	38,5	34	0,0004	17,8	4500	18
FT35-1820	89	457	20	1500	31,5	68	0,0004	17,8	4500	18
FT35-2405	89	610	5	373	47,5	17	0,0005	17,8	4500	21
FT35-2410	89	610	10	750	38,5	34	0,0005	17,8	4500	21
FT35-2420	89	610	20	1500	31,5	68	0,0005	17,8	4500	21
FT35-3605	89	914	5	226	47,5	17	0,00069	17,8	2700	25
FT35-3610	89	914	10	452	38,5	34	0,00069	17,8	2700	25
FT35-3620	89	914	20	903	31,5	68	0,00069	17,8	2700	25
FT35-4805	89	1219	5	145	47,5	17	0,00088	17,8	1700	30
FT35-4810	89	1219	10	290	38,5	349	0,00088	17,8	1700	30
FT35-4820	89	1219	20	568	31,5	68	0,00088	17,8	1700	30

Linear Servo Actuators FT35 Series - Dimensions

"EXTENDED TIE RODS" Mounting version only. All versions here.

---

Linear Servo Actuators FT60 Series - Performance data

Model No.	Frame Size	Stroke	Screw Lead	Max, Linear Speed	Dynamic Load Rating	Torque at Rated Force	Screw Inertia	Max, Force*	Max, Rot, Speed	Weight Base Unit
	mm	mm	mm	mm / sec	kN	Nm	kgm2	kN	rpm	kg
FT60-1206	152	305	6	201	231	104	0,0051	90,8	2000	45
FT60-1212	152	305	12	401	199	194	0,0051	90,8	2000	45
FT60-1230	152	305	30	1000	186	497	0,0051	90,8	2000	45
FT60-2406	152	610	6	201	231	104	0,0083	90,8	2000	59
FT60-2412	152	610	12	401	199	194	0,0083	90,8	2000	59
FT60-2430	152	610	30	1000	186	497	0,0083	90,8	2000	59
FT60-3606	152	914	6	201	231	104	0,011	90,8	2000	72
FT60-3612	152	914	12	401	199	194	0,011	90,8	2000	72
FT60-3630	152	914	30	1000	186	497	0,011	90,8	2000	72
FT60-4806	152	1219	6	201	231	104	0,014	90,8	2000	86
FT60-4812	152	1219	12	401	199	194	0,014	90,8	2000	86
FT60-4830	152	1219	30	1000	186	497	0,014	90,8	2000	86

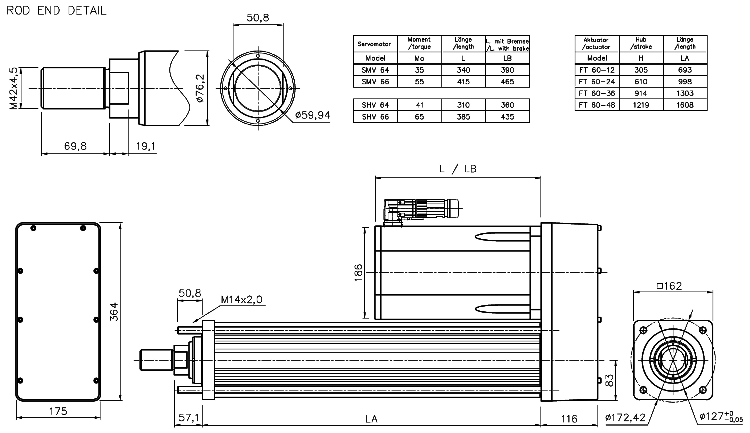

Linear Servo Actuators FT60 Series - Dimensions

"EXTENDED TIE RODS" Mounting version only. All versions here.

---

Linear Servo Actuators FT80 Series - Performance data

Model No.	Frame Size	Stroke	Screw Lead	Max, Linear Speed	Dynamic Load Rating	Torque at Rated Force	Screw Inertia	Max, Force*	Max, Rot, Speed	Weight Base Unit
	mm	mm	mm	mm / sec	kN	Nm	kgm2	kN	rpm	kg
FT80-1206	203	305	6	175	358	220	0,0184	178	1750	86
FT80-1212	203	305	12	351	312	401	0,0184	178	1750	86
FT80-1230	203	305	30	875	288	999	0,0184	178	1750	86
FT80-2406	203	610	6	175	358	220	0,028	178	1750	120
FT80-2412	203	610	12	351	312	401	0,028	178	1750	120
FT80-2430	203	610	30	875	288	999	0,028	178	1750	120
FT80-3606	203	914	6	175	358	220	0,037	178	1750	153
FT80-3612	203	914	12	351	312	401	0,037	178	1750	153
FT80-3630	203	914	30	875	288	999	0,037	178	1750	153
FT80-4806	203	1219	6	175	358	220	0,047	178	1750	187
FT80-4812	203	1219	12	351	312	401	0,047	178	1750	187
FT80-4830	203	1219	30	875	258	999	0,047	178	1750	187

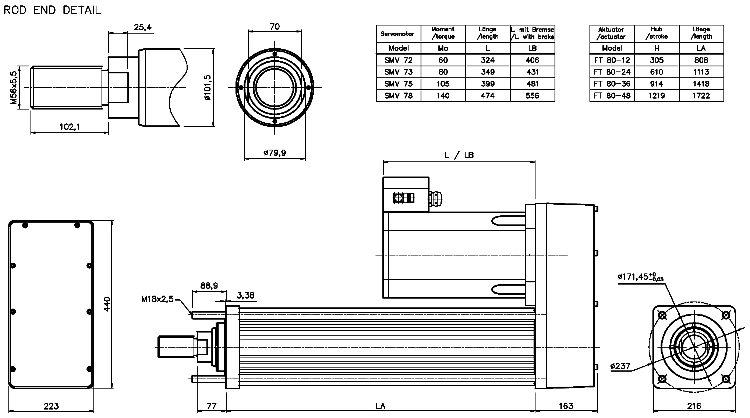

Linear Servo Actuators FT80 Series - Dimensions

"EXTENDED TIE RODS" Mounting version only. All versions here.

---

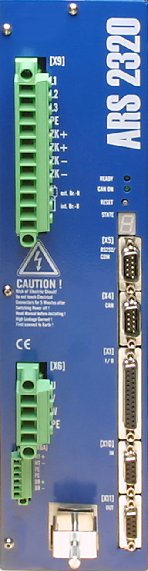

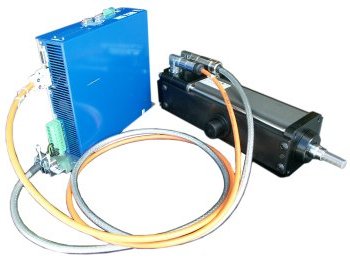

Servodrives's compatibility - Amplifier settings

• ER1 = Resolver standard 2 pole
• 003 = Encoder Heidenhein EQN 1125, 512 sin cos periods
• 008 = Encoder Heidenhein EQN 1325, 2048 sin cos periods
• 009 = Encoder Stegmann Hiperface SKM36 pinout, 128 sin cos periods
• LZ2 = LENZE tamagawa resolver
• EL2 = ELMO Motion Control
• AB1 = Allen-Bradley Ultra Series4, std encoder, 2048 line
• AB4 = Allen Bradley Ultra 3000 or 5000 with single-turn absolute encoder
• AB5 = Allen Bradley Ultra 3000 or 5000 with multi-turn absolute encoder
• AB6 = Allen Bradley 13948
• AD1 = Advanced Digital Simple Servo, std encoder, 2048 line
• AP1 = API resolver based
• AP2 = API encoder based, std encoder, 2048 line, with commutation, 5 VDC
• AM1 = Advanced Motion Controls, std encoder, 2048 line
• AM2 = Advanced Motion Controls, std encoder, 1000 line
• AM3 = Advanced Motion Controls, resolver, type 1
• AM4 = Advanced Motion Controls BX Series default settings
• BD2 = Baldor Flex Series
• BO1 = Bosch
• CC1 = Cleveland Machine Controls
• CM1 = Comau PICO
• CO1 = Copley Controls, std encoder, 2048 line
• CS1 = Custom Servo Motors MPA, MPSL (resolver, type 1)
• CS2 = Custom Servo Motors Servo Flex, std encoder, 2048 line
• EL1 = ELMO Motion Control
• EM2 = Emerson En, Epsilon, MDS Series and Uni-Drive4
• EM3 = Emerson MX Series
• EU1 = Stegman Hiperface ( SRS 50, SRS 60, SRM 50, SRM 60 )
• IN1 = Indramat ECO Drive, absolute, multi-turn Heidenhain encoder
• IN2 = Indramat ECO Drive, absolute, single-turn Heidenhain encoder
• IN4 = Indramat ECO Drive, Standard resolver
• KM1 = Kollmorgen ServoStar and ServoStar CD Series 7 230V
• KM3 = Kollmorgen ServoStar600 Series, Absolute encoder, single turn
• KM4 = Kollmorgen ServoStar600 Series, Absolute encoder, multi-turn
• KM5 = Kollmorgen ServoStar600 Series7
• MD1 = Modicon
• OR1 = Ormec

• PC1 = Parker Compumotor Apex and Z Series (resolver, type 1)
• PC2 = Parker Compumotor TQ Series
• PC3 = Parker Compumotor Gemini Series,std encoder, 2048 line
• PS2 = Pacific Scientific,std encoder, 2048 line
• PS3 = Pacific Scientific SC900, 700 Series
• SM1 = Siemens
• SP2 = In Motion, PAM Series
• WD1 = Whedco
• YS2 = Yaskawa Sigma I (multi-turn Absolute encoder)
• YS3 = Yaskawa Sigma II (multi-turn Absolute encoder)
• SM3 = Simens absolute encoder
• LZ5 = LENZE tamagawa resolver

More information about Servo Actuators Technology

Interactive catalog - Linear Servo Actuators
