Linear Stepper Motor With IP65 Protection And ETHERCAT Communication - ServoDrive

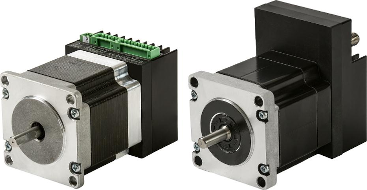

Linear stepper motor IP65 + EtherCat BUS

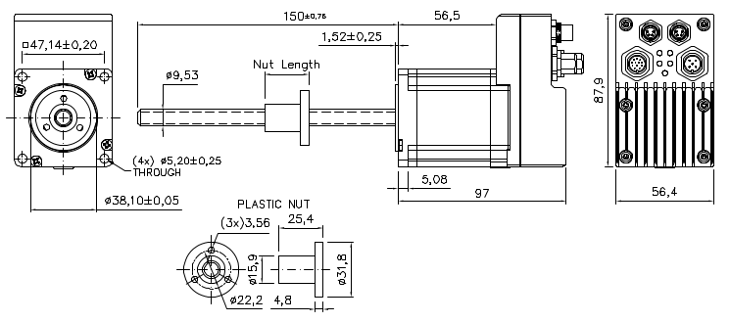

Linear stepper motor IP65 and ETHERCAT - Dimensions
Optionaly various screw leads and various screw length as well as antibacklash nuts are available.more here.
- Screw Length up to 3meters (Recommended max 600mm, consult bearing support for more)
- Screw Lead 0.5mm to 50mm per rotation. Forces and Speeds according to it more here
- Standard Nut with 0.1mm mechanical backlash, Optional Antibacklash Nut.

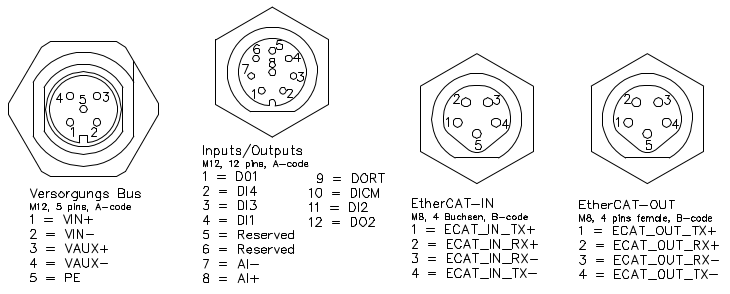

Wiring of connectors of Ethercat stepper motor
Power Connector and Connector for Inputs and Output and 2 Connectors for ETHERCAT (Ethercat IN and Ethercat OUT).
