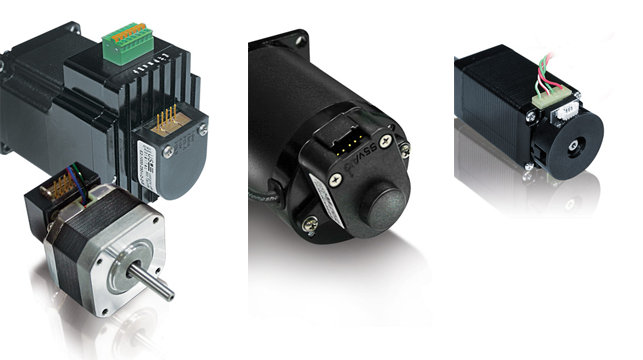

Stepper Motors with Encoder Feedback
Stepper Motors NEMA23 and NEMA34 with Encoder Feedback
| Model | Step (°) | Length (mm) | Torque (N.m) | Current (A) | Resistance (Q) | Inductance (mH) | Voltage (V)
|
| NEMA24-1758 | 1.8 | 58 | 1.7 | 5.8 | 0.85 | 1.1 | 2.8
|
| NEMA24-2158 | 1.8 | 65 | 2.1 | 5.8 | 1 | 1.2 | 3.1
|
| NEMA24-2358 | 1.8 | 78 | 2.3 | 5.8 | 1.1 | 1.1 | 3.2
|
| NEMA24-2858 | 1.8 | 84 | 2.8 | 5.8 | 1.29 | 1.3 | 2.9
|
| NEMA24-4558 | 1.8 | 102 | 4.5 | 5.8 | 1.65 | 2.4 | 4.4
|
| NEMA24-4858 | 1.8 | 112 | 4.8 | 5.8 | 1.8 | 2.11 | 4
|
| NEMA24-5558 | 1.8 | 127 | 5.5 | 5.8 | 2.27 | 6.9 | 8.7
|
| | | | | | |
|
| Model | Step (°) | Length ( mm) | Torque (N.m) | Current (A) | Resistance (Q) | Inductance (mH) | Voltage (V)
|
| NEMA34-2844 | 0.9/1.8 | 65 | 2.8 | 4.4 | 1.3 | 3.2 | 60-80
|
| NEMA34-2040 | 0.9/1.8 | 65 | 2 | 4 | 1.2 | 3.3 | 60-80
|
| NEMA34-2840 | 0.9/1.8 | 65 | 2.8 | 4 | 0.8 | 3.35 | 60-80
|
| NEMA34-3040 | 0.9/1.8 | 80 | 3 | 4 | 0.9 | 2.6 | 60-80
|
| NEMA34-4030 | 0.9/1.8 | 80 | 4 | 3 | 1.5 | 8.1 | 60-80
|
| NEMA34-7540 | 0.9/1.8 | 98 | 7.5 | 4 | 0.9 | 7.4 | 60-80
|
| NEMA34-8540 | 0.9/1.8 | 113 | 8.5 | 4 | 1 | 11 | 60-80
|
| NEMA34-8140 | 0.9/1.8 | 118 | 8.1 | 4 | 1.3 | 6.4 | 60-80
|
| NEMA34-10044 | 0.9/1.8 | 128 | 10 | 4.4 | 1.4 | 7.3 | 60-80
|
| NEMA34-12044 | 0.9/1.8 | 150 | 12 | 4.4 | 1.7 | 9.7 | 60-80
|
| NEMA34-12545 | 0.9/1.8 | 156 | 12.5 | 4.5 | 1.65 | 11.5 | 60-80
|
Request a Quote for Stepper Motor with Encoder:
Request Quote
