Stepper Motor for Vacuum 211-13-02

photo dimensions
Datasheet of Vacuum Rated Stepper Motor 211-13-02
ModelTorqueCurrentFlangeLengthResistenceInductivityInertiaWeightWires
-NmAmmmmOhmmHkg.cm2kg-
211-13-020,061,328x28321,71,10,00920,1094

Step Angle:1.8 degree per step
Full Rotation:200 steps per rotation

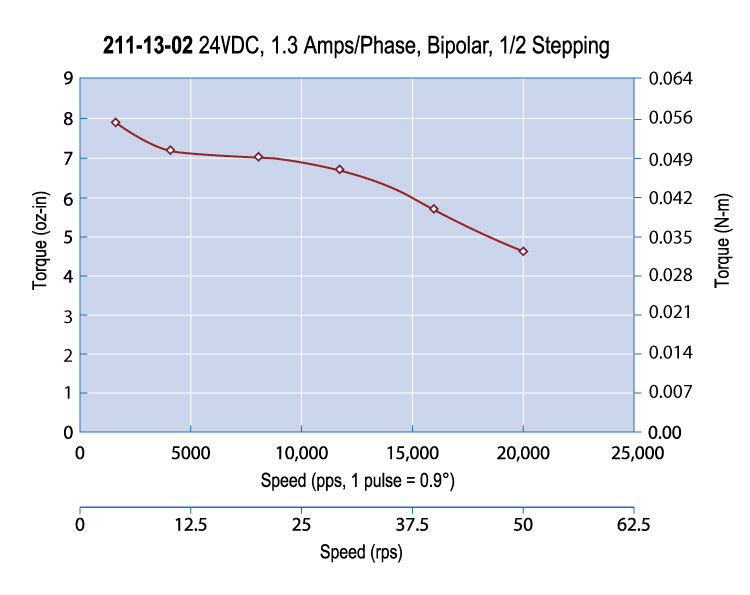

Torque Speed Curve

křivka

Electric Connection

Bipolar DriverAA-BB-
Color Code 1RedBlueGreenBlack
Color Code 2BrownOrangeRedYellow
Color Code 3RedRed/WhiteGreenGreen/White
