Stepper Motor for Vacuum 4118S-02

dimensions

Datasheet of Vacuum Rated Stepper Motor 4118S-02

Model	Torque	Current	Flange	Length	Resistence	Inductivity	Inertia	Weight	Wires
-	Nm	A	mm	mm	Ohm	mH	kg.cm²	kg	-
4118S-02	0,32	1,3	42x42	34	2,8	3,6	0,0329	0,181	4

Step Angle:	1.8	degree per step
Full Rotation:	200	steps per rotation

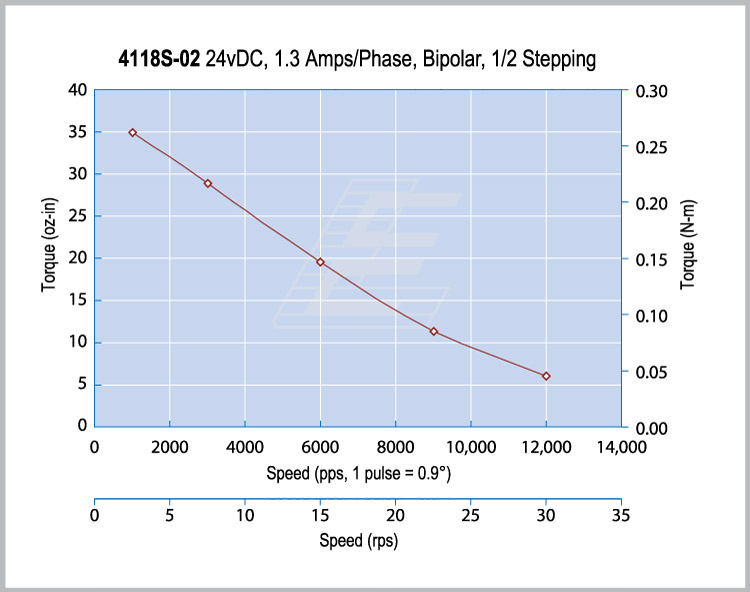

Torque Speed Curve

křivka

Electric Connection

Bipolar Driver	A	A-	B	B-
Color Code 1	Red	Blue	Green	Black
Color Code 2	Brown	Orange	Red	Yellow
Color Code 3	Red	Red/White	Green	Green/White
