Stepper Motor for Vacuum 5718X-05P

dimensions

Datasheet of Vacuum Rated Stepper Motor 5718X-05P

Model	Torque	Current	Flange	Length	Resistence	Inductivity	Inertia	Weight	Wires
-	Nm	A	mm	mm	Ohm	mH	kg.cm²	kg	-
5718X-05P	0,71	1,4	57x57	44,2	2,5	4,8	0,1281	0,476	4

Step Angle:	1.8	degree per step
Full Rotation:	200	steps per rotation

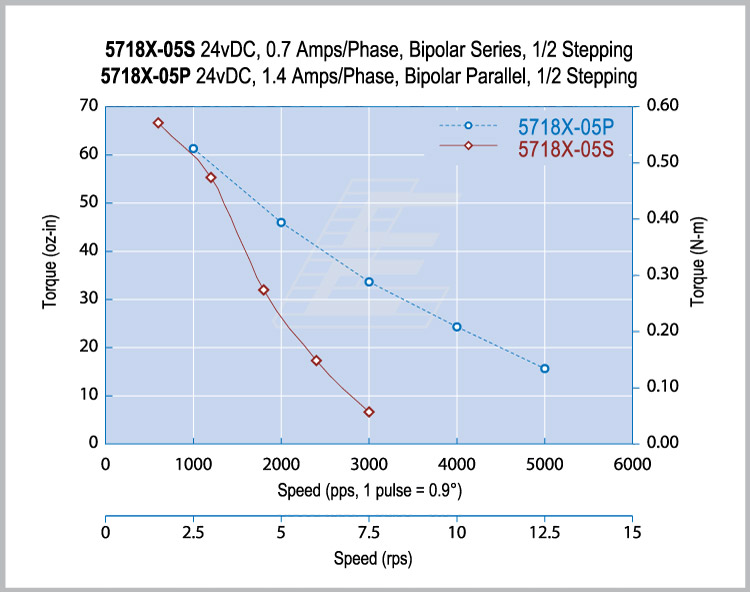

Torque Speed Curve

křivka

Electric Connection

Bipolar Driver	A	A-	B	B-
Color Code 1	Red	Blue	Green	Black
Color Code 2	Brown	Orange	Red	Yellow
Color Code 3	Red	Red/White	Green	Green/White
