Series ACD / ADR is a small rotary stage using direct drive, brushless motor technology. It has a diameter size of at least 62 mm and a centre through hole. The motor design is coreless, giving smooth motion even at low speeds. It also gives a relatively high torque. The encoder is also of high resolution. Hall sensors are integrated, so low cost drivers (trapezoidal commutation, current mode) can be used. This product can replace rotary stages using worm gears with stepper or servo motors. In addition to improvements on speed an accuracy, the ACD/ADR series offers a more compact design.
Options: 4 Frame sizes : ACD 62, ACD 120, ACD 150, ADR 220
Height: ACD 62 (55 mm, 84 mm); ACD 120 (80 mm, 175 mm); ACD 150 (95 mm, 180 mm); ADR 220 (150 mm, 200 mm)
Encoder resolution : ACD (SINCOS 81.920-819.200 counts/rev); ADR (SINCOS 144.000-1.440.000 counts/rev)

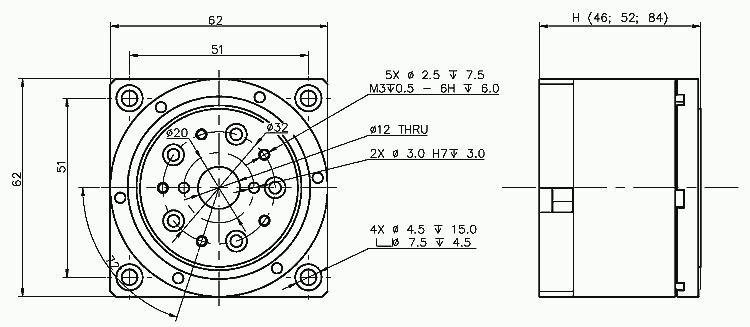

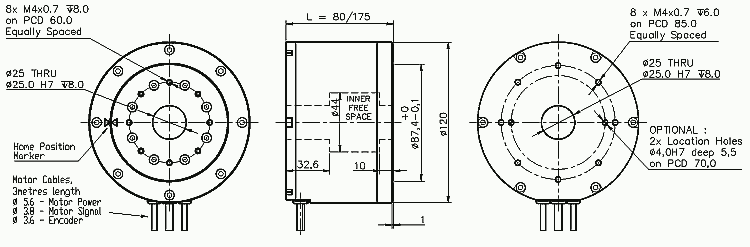

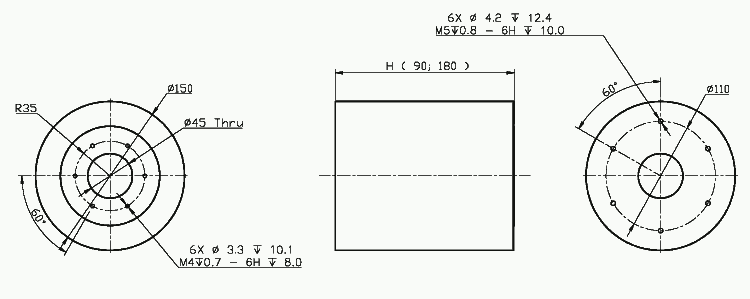

| Model | Units | ACD 62-52 | ACD 62-84 | ACD 120-75 | ACD 120-175 | ACD 150-90 | ACD 150-180 |
| Table diameter | mm | 62 | 62 | 120 | 120 | 150 | 150 |
| Continuous torque | Nm | 0,14 | 0,41 | 2,33 | 11,64 | 3,9 | 18,55 |
| Peak torque | Nm | 0,45 | 1,35 | 7,55 | 37,74 | 12,66 | 63,6 |
| Torque constant | Nm/A | 0,045 | 0,135 | 0,63 | 3,15 | 1,06 | 5,3 |
| Back EMF constant | V/rpm | 0,005 | 0,014 | 0,066 | 0,329 | 0,11 | 0,555 |
| Resistance | ohms | 1,5 | 2,2 | 5,2 | 11,1 | 8 | 17,8 |
| Continuous current | A | 3 | 3 | 3,7 | 3,7 | 3,7 | 3,5 |
| Peak current | A | 10 | 10 | 12 | 12 | 12 | 12 |
| Rotor inertia | kgcm2 | 0,1701 | 0,4149 | 10,2 | 32 | 27,4 | 78 |
| Number of poles | - | 8 | 8 | 12 | 12 | 12 | 12 |
| Radial runout | um | 4 | 4 | 6 | 6 | 8 | 8 |
| Axial runout | um | 4 | 4 | 6 | 6 | 8 | 8 |
| Mechanical allowable speed | rpm | 2500 | 2500 | 952 | 952 | 816 | 816 |
| Rec, max speed at 24 VDC | rpm | 1846 | 113 | - | - | - | - |
| Rec, max speed at 48 VDC | rpm | 2500 | 1811 | - | - | - | - |
| Rec, max speed at 150 VDC | rpm | 2500 | 2500 | 952 | 51 | 486 | - |
| Rec, max speed at 300 VDC | rpm | 2500 | 2500 | 952 | 507 | 816 | 157 |
| Request Quote |  | | | | | | |

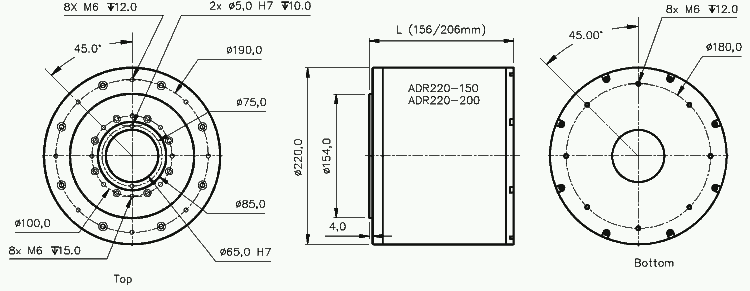

| Modell | ADR 220-150 | ADR 220-200 | |
| Table diameter | mm | 220 | 220 |
| Table height | mm | 156 | 206 |
| Diameter hollow shaft | mm | 65 | 65 |
| Continous torque (coil at 100 Celsia) | Nm | 33,98 | 67,95 |
| Peak torque | Nm | 101,93 | 203,85 |
| Torque constant | Nm/A | 7,55 | 15,1 |
| Resistance | Ohm | 5,5 | 11 |
| Continous current | A | 4,5 | 4,5 |
| Peak current | A | 13,5 | 13,5 |
| Rotor inertia | kgcm2 | 169 | 260 |
| Number of poles | 24 | 24 | |
| Axial run-out | micrometer | 8 | 8 |
| Radial run-out | micrometer | 8 | 8 |
| Load capacity | kg | 17,9 | 24,5 |
| Weight | kg | 17,9 | 24,5 |
| Max. operating speed at 300 VDC bus voltage | Winding S1/min-1 | 360 | 180 |
| - | Winding P1/min-1 | 720 | 360 |
| - | Winding P2/min-1 | 1080 | 540 |
