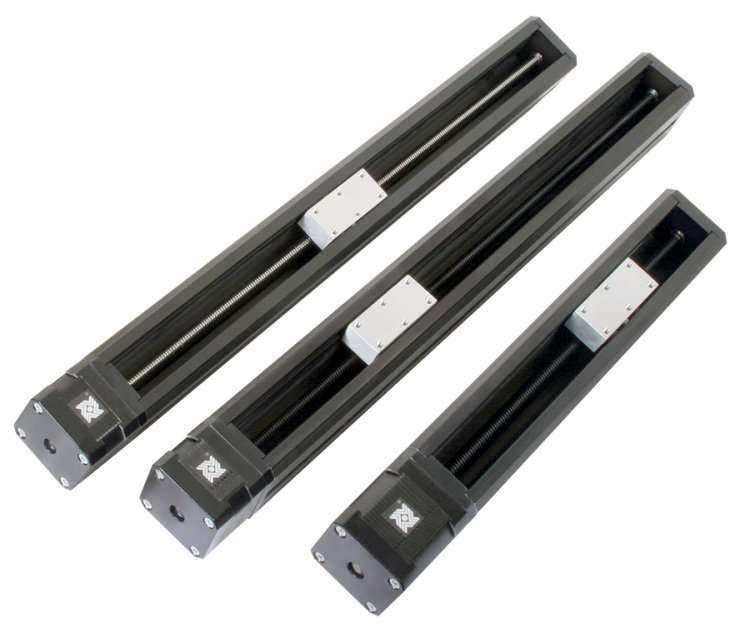

Linear Stepper Drive Complete Rail System - Linear Stepper Motor Axis

Linear Stepper Drive Compact Covered Type - NEMA17LA

Key Product Features

Stepper Motor Actuator integrated into a Complete Linear Stepper Motor Axis
"T" Slots integrated into exterior rail bottom and sides that accomodate
full length support and various mounting options.
Load bearing carriage moves efficiently and smoothly within the
internal rail geometry of this aluminum extrusion.
Rail provides end-to-end axial stability and precise motion
system accuracy.
Automatic adjustments of slide bearing play with a
patent pending "anti-backlash" linear bearing.
Rated life equals that of the long life
leadscrews of similar size.

stepper motor linear axis

Performance Specifications

Max speed 500 mm/s
Max length of slide 1000 mm
Max Load Z axis 225 Newtons
Max hanging/gantry 225 Newtons
Straight line accuracy: +/- 1.0 mm / Meter
Twist: +/- 0.75 Degrees / Meter
Max moment about top dir. "Yaw" 8.5 Nm
Max moment about length of rail dir. "Roll" 8.5 Nm
Max moment about forward and back dir. "Pitch" 8.5 Nm

Lead Screw Pitch Options :

Code	Screw Lead	Standard Motor	High Resolution Motor
-	-	step 1,8°	step 0,9°
-	mm/rot	mm/step	mm/step
0025	0,635	0,003175	0,0015875
0031	0,794	0,00397	0,001985
0039	1	0,005	0,0025
0050	1,27	0,00635	0,003175
0063	1,588	0,00794	0,00397
0079	2	0,01	0,005
0100	2,54	0,0127	0,00635
0125	3,175	0,015875	0,0079375
0197	5	0,025	0,0125
0250	6,35	0,03175	0,015875
0394	10	0,05	0,025
0500	12,7	0,0635	0,03175
0750	19,05	0,09525	0,047625
1000	25,4	0,127	0,0635

Stepper Motor Options:

Voltage Levels (Standard Motor):

2,33 VDC; 1.5A (Recomended for High Speed Applications)
5 VDC; 700mA
12 VDC; 290mA

Voltage Levels (Double Stack Motor):

2,33 VDC; 2.6A
5 VDC; 1.3A
12 VDC; 560mA

Stepper Motor Step Angle:

1.8 Degree; 200 steps per revolution
0.9 Degree; 400 steps per revolution

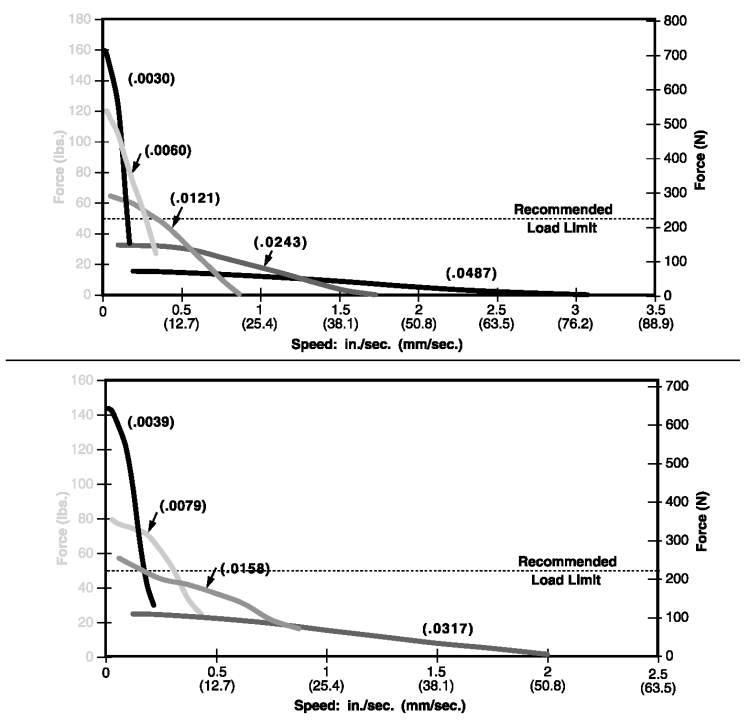

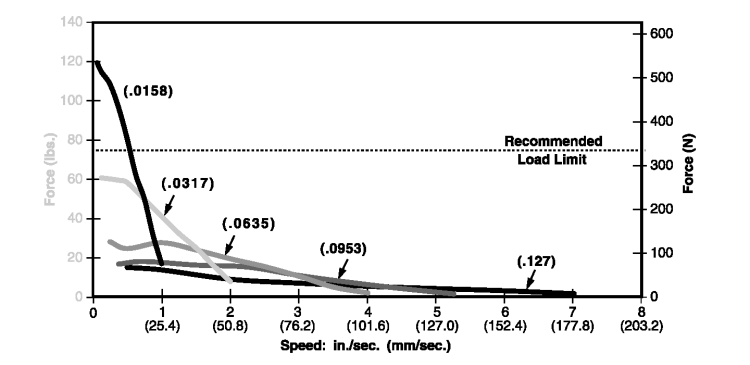

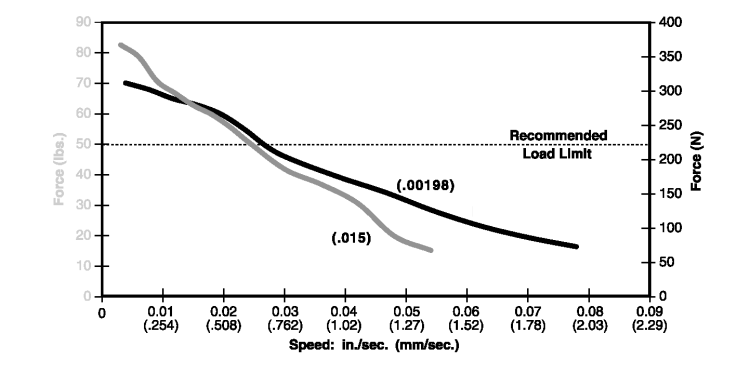

Performance Curves - Force [Newtons] vs Linear Speed[mm/s]:

Internal Lead Screw Nut:

"B" = BFW = FREE WHEELING NUT
no spring, no antibacklash mechanism, has mechanical backlash 0.1 mm
"W" = Wedge Antibacklash Nut
        with prelaoded spring, antibacklash mechanism, mechanical backlash is 0 mm
        user must specify force to which to preload the nut
        (typical preload on this motor is 30Newtons, if you apply higher force backlash is not compensated)

Aditional Assembly Options:

Encoder 200-1200 pulses, optional Index Pulse, Single/Diferencial Signal
Rear Shaft for Encoder
Integrated Controller on Motor Back Side

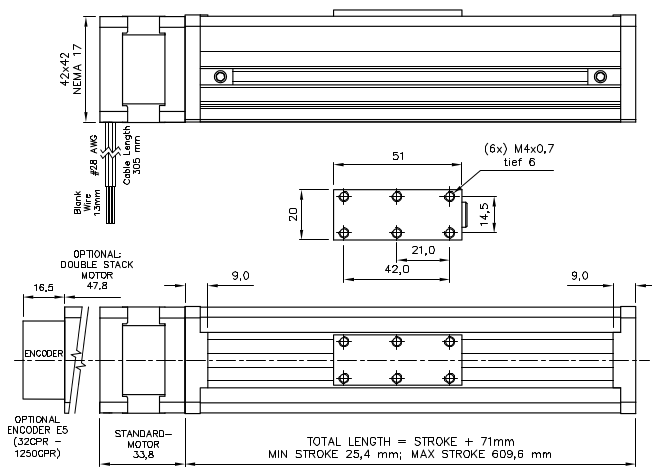

Linear Stepper Motor Drive - NEMA17LA - Dimensions:

drawing

Linear Stepper Motor Drive - NEMA17LA - Order Code Example:

Model:	NEMA17LA = Stepper Motor Linear Axis
Nut :	B = Free Wheeling Nut (Mechanical Backlash is 0.1mm)
	W = Wedge Antibacklash Nut (Backlash is 0mm, Preload Force need to be specified)
Frame Load :	04 = 22.6kg
Coating :	S = Uncoated / B = Black Ice (Teflon expensive)
Thread :	R = Right Hand / L = Left Hand
Thread Lead :	0025 = 0.635 mm/rot (see Lead Screw Table)
Stroke :	xxx = xxx milimeters (available stroke 25.4 - 609.6mm)
Motor :	M43 = Nema 17 Stepper Motor
Mot voltage :	2 = 2.33 VDC
Mot current :	029 = 0.290 A
Mot angle :	18 = 1.8 degree step angle / 09 = 0.9 degree step angle
Cable outlet :	T = Top / B = Bottom / L = Left / R = Right
Carriage :	M = Metric threads / U = UNC Threads
Options :	ENC400PPRID = Encoder 400 pulses per revolution / Index Pulse / Differential Voltage
	Rear Shaft for Encoder
	Integrated Electronics
	High Temperature Version +155 Celsia
	No Grease - Teflon Coated Lead Screw

Linear Stepper Motor Drive - NEMA17LA - Request a Quote:

If you need a price level pro specific project of help with technical details, you can contact us via a web formular.

Request Quote

Request Quote

Linear Guide Integrated with Lead Screw and Stepper Motor

zdvih 25-1825mm; síly až 1000N; max rychlost 500mm/s

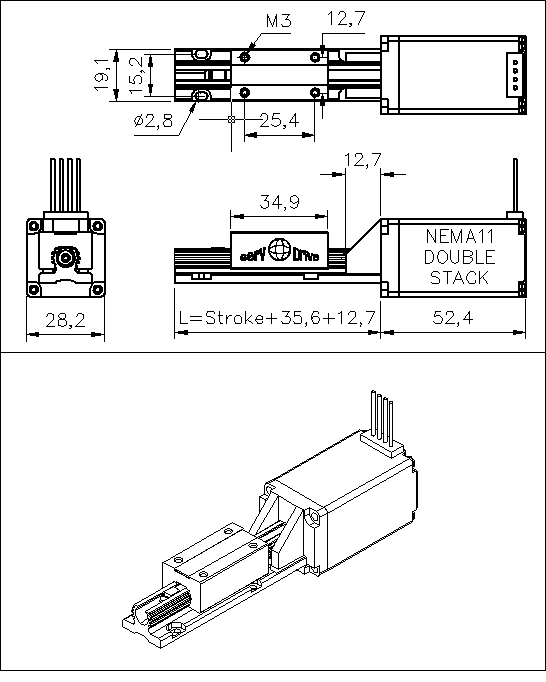

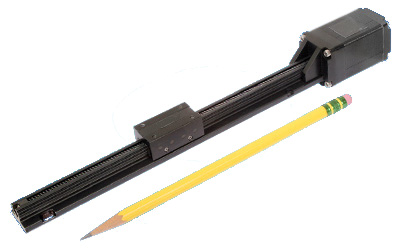

NEMA11LG - Linear Guide with Lead Screw and Stepper Motor NEMA 11

Lineární vedení integrované s pohybovým šroubem a motorem NEMA 11

Lineární vedení integrované s pohybovým šroubem a motorem NEMA 11

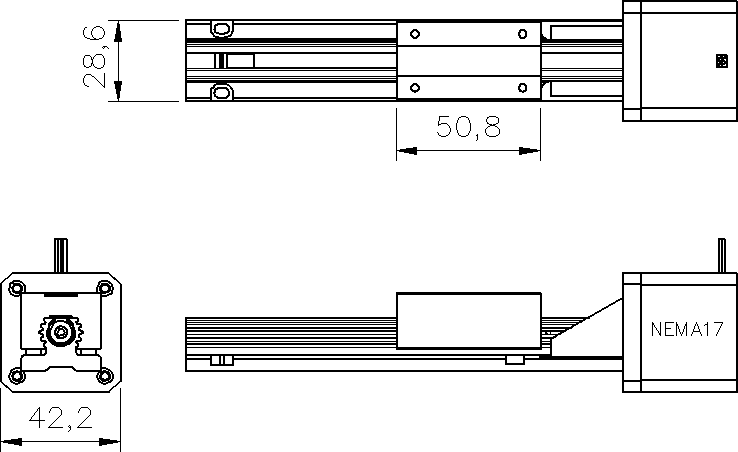

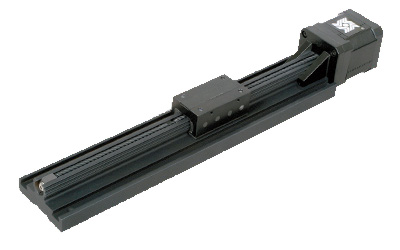

NEMA17LG - Linear Guide with Lead Screw and Stepper Motor NEMA 17

Lineární vedení integrované s pohybovým šroubem a motorem NEMA 17

Lineární vedení integrované s pohybovým šroubem a motorem NEMA 17

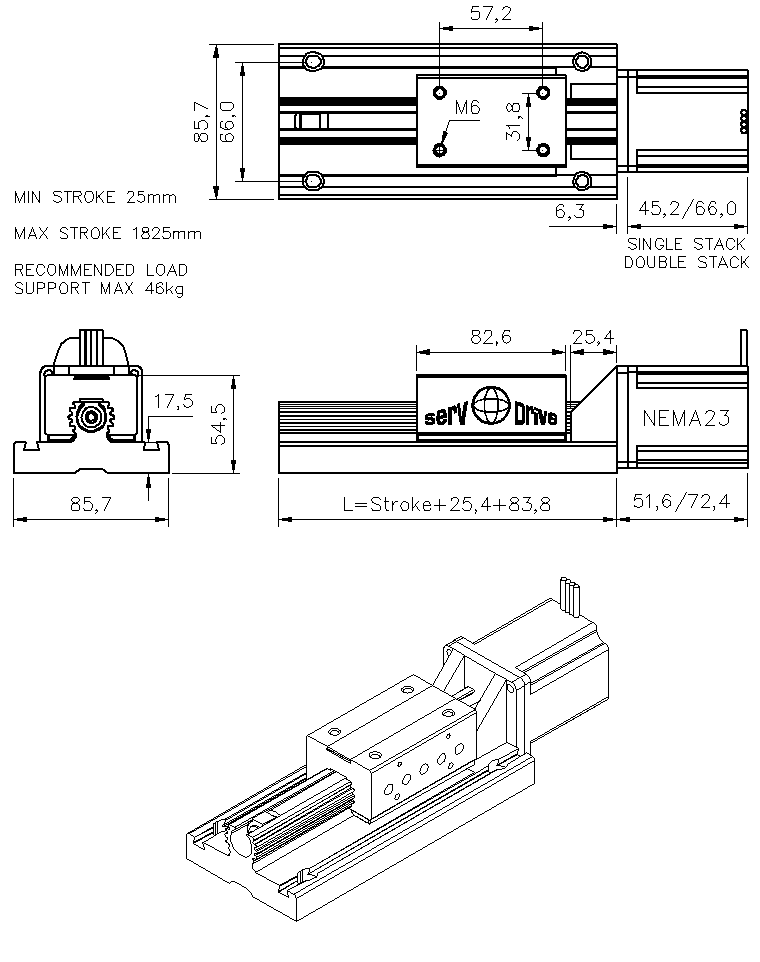

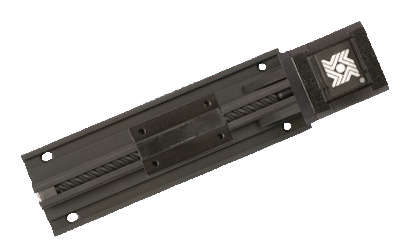

NEMA23LG - Linear Guide with Lead Screw and Stepper Motor NEMA 23

Lineární vedení integrované s pohybovým šroubem a motorem NEMA 23

Lineární vedení integrované s pohybovým šroubem a motorem NEMA 23

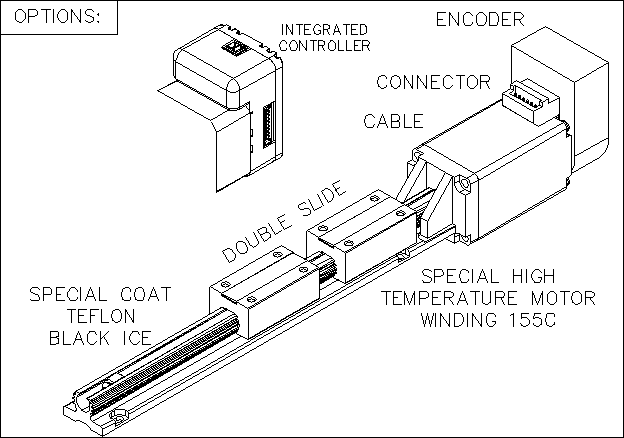

Options for Linear Guide with Stepper Motor :
