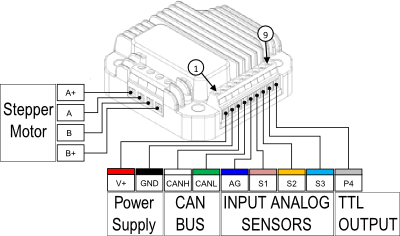

Stepper Motor CAN BUS controller terminal description

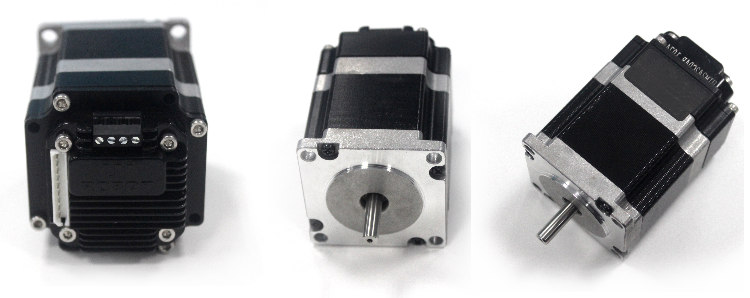

Miniature Integral Design
Miniature size 42.3mm*42.3mm*16.5mm
Fit onto motors seamlessly
Die-cast aluminum enclosure, improving heat dissipation and durability
Motor Driving Characteristics
Wide supply voltage range 12 ~ 50VDC*
Output current 2/4/8A, instruction adjustable
Full to 16th micro-step resolution
Dual full H-bridge with PWM constant current control
*-H product (Max. supply voltage is 50V) is custom made, please contact with salesmans before purchase.
Network Communication
CAN2.0 A / B
2-wire interface, max 1M bps operation, long distance
Differential bus, high noise immunity, max 100 nodes
Embedded DSP Microprocessor
Hardware DSP, 64bits calculating precision
Simple instructions, intuitive and fault-tolerating
Intelligent control, intuitive and fault-tolerating
SDK and underlying control drive of host
VC++, C, C# , VB demo
Advanced Motion Control
Absolute position record / feedback, Power-failure position protection
Quadrature encoder based closed-loop control
linear and non-linear acceleration and deceleration, S-curve, PT/PVT displacement control
Backlash compensation
Advanced I / O Control (without host)
3 sensor input ports, 1 analog input (12bit)
1 TTL output
3 trigger mode (continuous / intermittent / single)
6 independent motion parameter group
Pre-set action controlled by I / O
I / O real-time event-based change notification
12 real-time event based change notifications
13 programmable actions
Others
Initial status configurate
Auto-lock when emergency
User program
Regeneration discharge module (sold separately)
Stepper Motor in Single CAN BUS Network
Standalone Operation

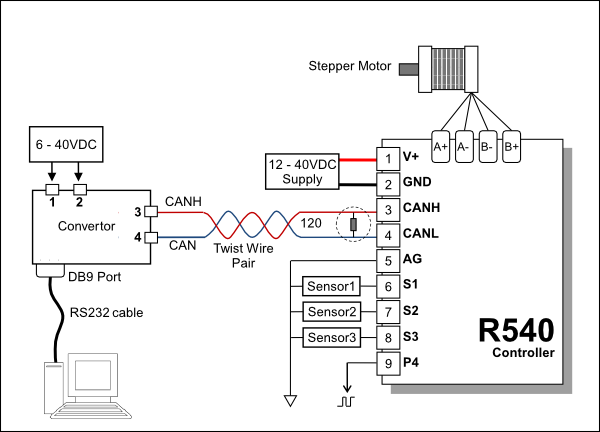

When working standalone, user can use the wiring scheme.
For long distance transfer, both ends of the CAN bus should be terminated with120Ω terminating resistors.
As converter has a build-in terminating resistor, user only needs to attach a resistor at the other end
of the bus. Please refer to the manual for how to enable the converter’s terminating resistor.
CANH and CANL should use a twisted wire pair.
Except supply voltage port and motor terminal, voltage on port must be kept between -0.3 ~ 5.3V.

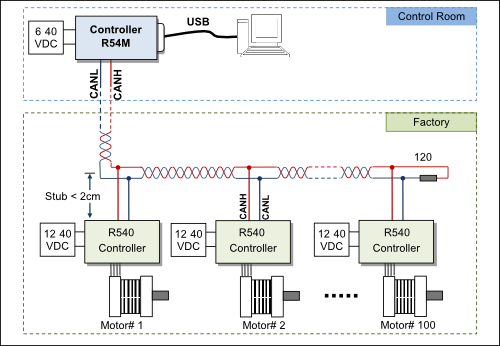

Stepper Motors CANBUS Network
Network Operation
CAN bus provides a reliable and simple method of network constructing.
A wiring scheme is presented for such network operation with one RS232/CAN
converter connected with multiple controllers. For detailed terminal wiring
on each controller.
All nodes are connected onto a twist wire pair.
Star connection scheme must be avoided.
The stub must not exceed 2cm each (The shorter, the better).
Both ends of the bus should be terminated with120 Ω terminating resistors.
Shielded 120 ohm CAN bus cable is recommended if the transfer distance is over 50 meters.
In practice only one terminating resistor is need at the other end of
CAN bus since Controller already has a built-in terminating resistor. To activate
this built-in terminating resistor.
