Specialty Stepper Motors Solutions - ServoDrive Special Stepper Motors :
Stepper Motors for Vacuum
Stepper Motors for Vacuum -> more informations
Stepper Motors with IP65 Protection
Stepper Motors with IP65 Protection
Water Submersible Stepper Motors - IP68 protection
Hollow Shaft Stepper Motors
Hollow Shaft Stepper Motors
Step Motors with Planetary Gearbox
Krokový motor s planetovou převodovkou
Stepper Motors with Gearbox for Vacuum Environment
Stepper Motors with Gearbox for Vacuum Environment
Stepper Motors in Linear Axis for Vacuum
Stepper Motors in Linear Axis for Vacuum
Thin Stepper Motor - Flat Size Steppers
Flat Size Steppers
Stepper Motor with Encoder Feedback
Stepper Motor with Encoder Feedback
Closed Loop Stepper Motors
Closed Loop Stepper Motors
Stepper Motors with CAN BUS communication - CAN 2.0 Module
CAN BUS communication module attached to stepper motor body
Possibility to connect Encoder and use Closed Loop Control
More than 100motors can be connected to one CAN BUS
Stepper Motors with CAN BUS communication
Stepper Motors with Absolute Encoder
Stepper Motors with Absolute Multiturn Encoder
Close Loop Control
Machine know exact position in multiple turns of encoder (up to 1024)
Stepper Motors with Absolute Multiturn Encoder

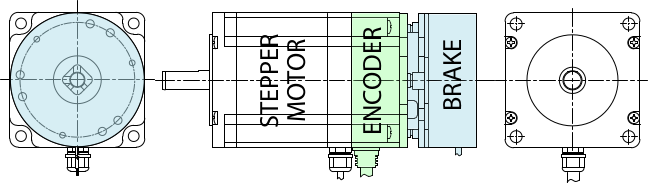

Stepper Motors with Encoder and Brake
Currently available in NEMA23 and NEMA34
Stepper Motors with Encoder 200-2000 ppr
integreated safety electromagnetic brake
INTEGRATED STEPPER MOTORS - CONTROLLER, DRIVER, ENCODER, etc.
Integrated Motor Controller+Driver+Encoder/ SilverPak 17CE
NEMA 17, 1.8º Bipolar Step Motor
Operates from +12 to 40 VDC
Phase current ranges from 0.1 to 2.0 Amps Peak
Step Resolutions of 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256
Two Digital I/O's and two dedicated Inputs
Execution Halt Pending a Switch
Pre-wired for Opto Switch Inputs
Homes to an Opto Sensor
Fully programmable ramps and speeds
Software selectable Hold and Move currents
Stand Alone Operation with no connection to PC
Stores up to 16 different programs at once with 4 kBytes of memory
Up to 0,7 Nm of Holding Torque
Integrated Motor+Driver/ SilverPak 17D
NEMA 17, 1.8º Bipolar Step Motor
Operates from +12 to 24 VDC
Up to 0,7 Nm of Holding Torque
Phase current ranges from 0.25 to 2.0 Amps Peak
Step Resolutions from Full, 2x, 4x, 8x
Optically isolated Step, Direction,
Selectable Current Reduction of 33%
Low Power Dissipation
Efficient Current Control
Thermal Shutdown, Under-voltage Protection
3 stack lengths available
Integrated Motor Controller+Driver/ SilverPak 17C
NEMA 17, 1.8º Bipolar Step Motor
Operates from +12 to 40 VDC
Phase current ranges from 0.1 to 2.0 Amps Peak
Step Resolutions of 1/2, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 1/256
Two Digital I/O's and two dedicated Inputs
Execution Halt Pending a Switch
Pre-wired for Opto Switch Inputs
Homes to an Opto Sensor
Fully programmable ramps and speeds
Software selectable Hold and Move currents
Stand Alone Operation with no connection to PC
Stores up to 16 different programs at once with 4 kBytes of memory
Up to 0,7 Nm of Holding Torque
Integrated Motor+Controller+StallGuard/ SilverPak 17T
Integrated Bipolar 1.8° Step Motor with Driver/Controller
NEMA Size 17 Frame
Holding Torque of up to 0,7Nm
Input voltage of +7 to 28 VDC
Output currents of 0.1 to 1.5 Amps Peak
Step resolution of full step, 2x, 4x, 8x, and 16x microstepping
Maximum speed of 250 kHz
Up to 16 MHz of Step Clock Frequency
Two digital limit switches, left and right
One general purpose input (digital or analog)
One open collector output capable of outputting 100mA
Low power dissipation – no heat sink required
Stand alone operating with no connection to PC
Incorporated with TMCL Programming Language
Up to 16 kBytes of Memory (2048 TMCL commands)
Programmable settings for acceleration and velocity profiles
Control commands such as Jump and Subroutines available
Calculation and compare commands implemented
StallGuard™ feature available
– capable of detecting a stall without encoder
RS485 communication
3 stack lengths available

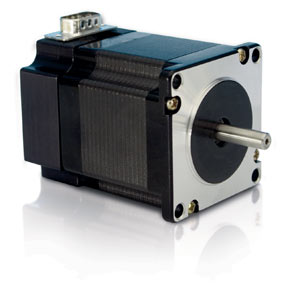

Integrated Motor+Driver/ SilverPak 23D
Operates from +12 to 48 VDC with certain currents*
Selectable phase currents from 0.3 to 3.0 Amps Peak with certain voltages*
Step resolutions from half step to 256x microstepping
Four selectable damping modes
Smooth motion
Three optically isolated control inputs and one optically isolated control output
Hold current reduction capability with adjustble current and timeout setting
Pole Damping™ Technology
* Please refer to Electrical Specs section for further details
Integrated Motor+Driver+Encoder/ SilverPak 23DE
Operates from +12 to 48 VDC with certain currents*
Selectable phase currents from 0.3 to 3.0 Amps Peak with certain voltages*
Step resolutions from half step to 256x microstepping
Four selectable damping modes
Smooth motion
Three optically isolated control inputs and one optically isolated control output
Hold current reduction capability with adjustble current and timeout setting
Pole Damping™ Technology
On Board Encoder
* Please refer to Electrical Specs section for further details
Integrated Motor+Controller/ SilverPak 23C
NEMA 23, 1.8° Bipolar Step Motor
Up to 2 Nm of holding torque
Input voltage of +12 to 40 VDC
Phase current ranges from 0.3 to of 3.0 Amps Peak
Microstepping capabilities of 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x
RS485 communication with optional converter cards available
4 user configurable digital I/O’s
2 dedicated inputs:
1 optical sensor for homing
1 switch closure to ground
Fully programmable ramps and speeds
Software selectable Hold and Move currents
Stand Alone Operation with no connection to PC
Stores up to 16 different programs at once with 4 kBytes of memory
3 stack lengths available
Integrated Motor+Controller+Encoder/ SilverPak 23CE
NEMA 23, 1.8° Bipolar Step Motor
Up to 2 Nm of holding torque
Input voltage of +12 to 40 VDC
Phase current ranges from 0.3 to of 3.0 Amps Peak
Microstepping capabilities of 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x
RS485 communication with optional converter cards available
4 user configurable digital I/O’s
2 dedicated inputs:
1 optical sensor for homing
1 switch closure to ground
Fully programmable ramps and speeds
Software selectable Hold and Move currents
Stand Alone Operation with no connection to PC
Stores up to 16 different programs at once with 4 kBytes of memory
3 stack lengths available
Flange Sizes NEMA8 to NEMA34 (flange 28x28 to 87x87mm)
Request Quote
NEMA 17 and 23, 1.8 degree Motor
NEMA 23, 1.8 degree Motor
Water Submersible Stepper Motors - IP68 protection
IP68 Stepper Motor Size NEMA34 [English only]
sizes NEMA8 to NEMA34, inner Through Hole ⌀3 to ⌀16mm
Planetary Gearbox with Ratios 4-515
Torque 10-100Nm, Flange Sizes 42x42, 57x57 a 87x87mm
Stepper Motors in Linear Axis for Vacuum
Thin Stepper Motors - height 12,5 mm - 30 mm
Stepper Motor with Encoder
Stepper Motor + Encoder + Closed Loop Control
